built-in light handlebar H1
H1
The LightSKIN built-in light handlebar has undergone further evolution with the introduction of H1.
H1 represents a complete redefinition of optical technology in bicycle lights, offering users an unparalleled experience.

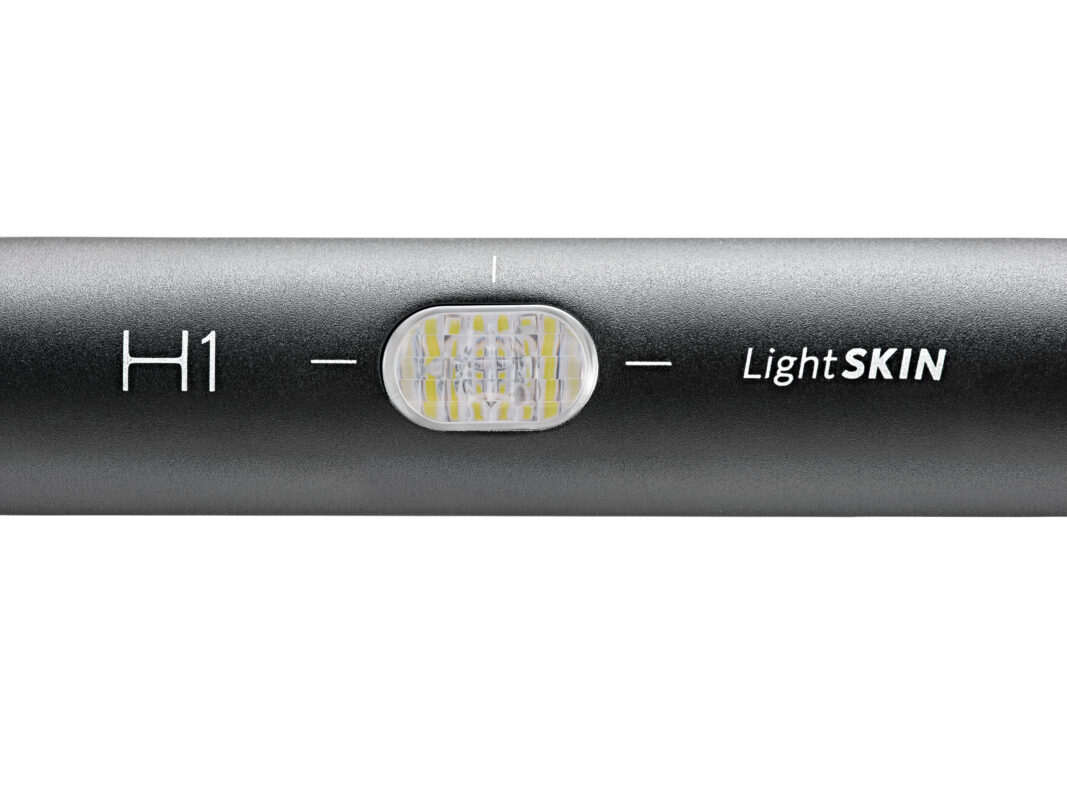

Experience the new lens from LightSKIN, achieved through highly precise optic technology.

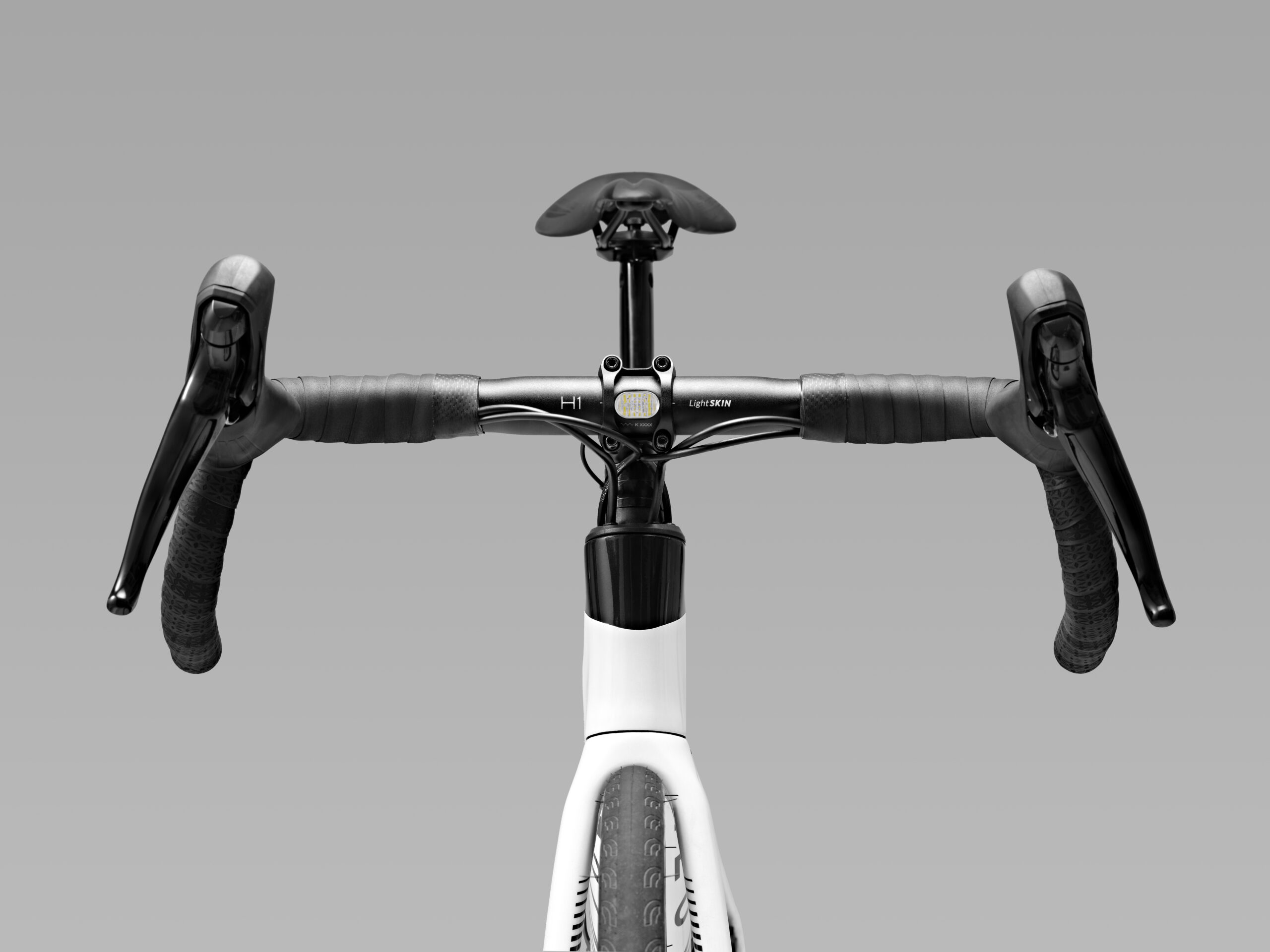

To pass the ISO-R, The H1E Dropbar has a light hole in the center and its shape is symmetrical . The same high performance light module as the H1E Flat bar is applied to the H1E Dropbar. A handlebar stem that does not cover the light hole in the center is required.
Light unit
| Light Module | LightSKIN V1 lens, 1 high-brightness LED |
| Luminous flux | 400 lm |
| Power Source | On-board battery of the e-bike or other devices |
| Nominal voltage | DC 12V (6V-24V) |
| Power consumption | 5W |
Features

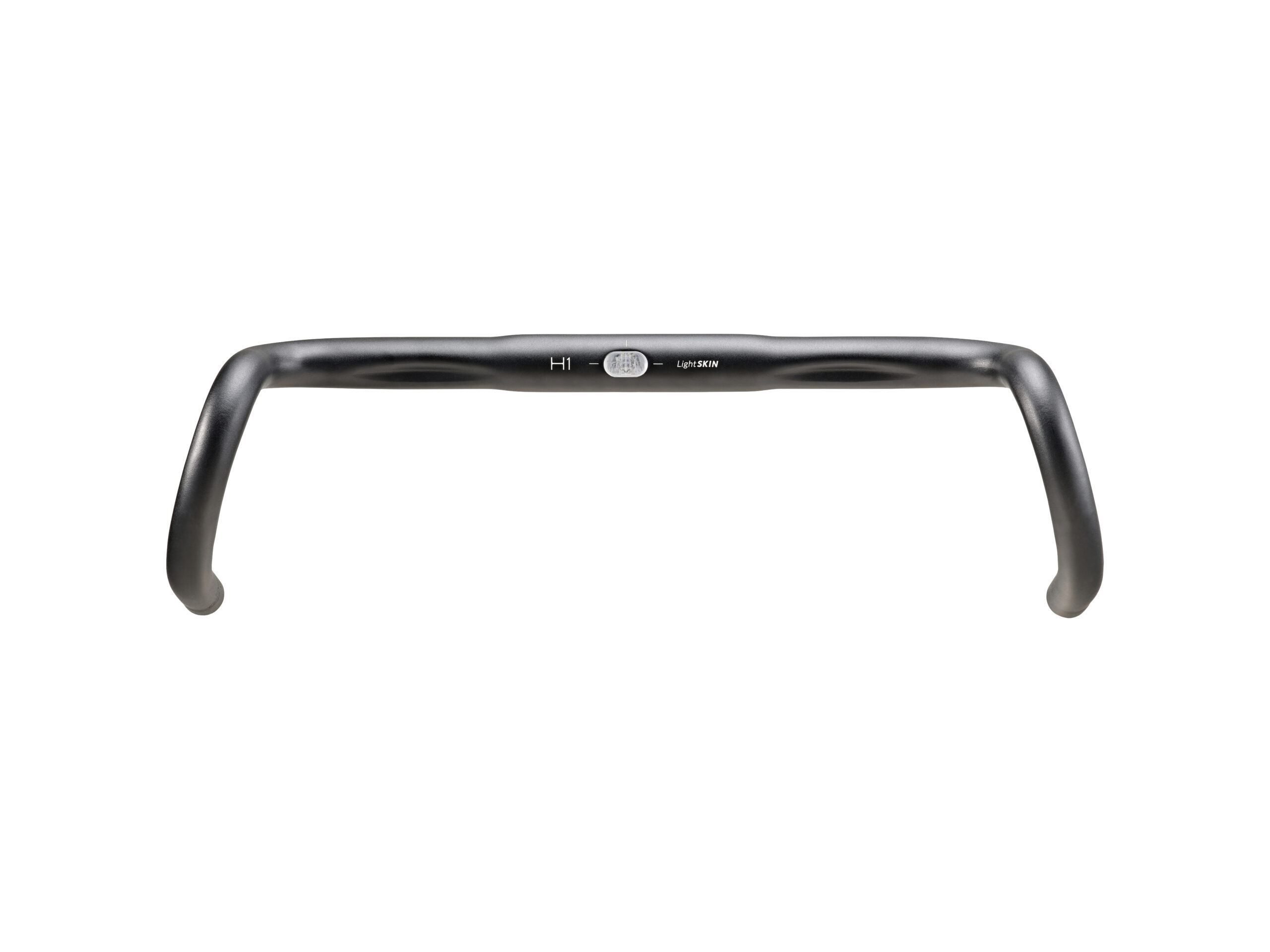

H1E DROP
| Diameter | Center 31.8mm |
| Handlebar Widths | 420 / 440 (mm) |
| Bar Type | Reach 80mm, Out sweep 3˚16˚, Drop 121mm |
| Handlebar color and surface finish |
Anodized black |
| Handlebar material | Aluminum 6061 T6 |

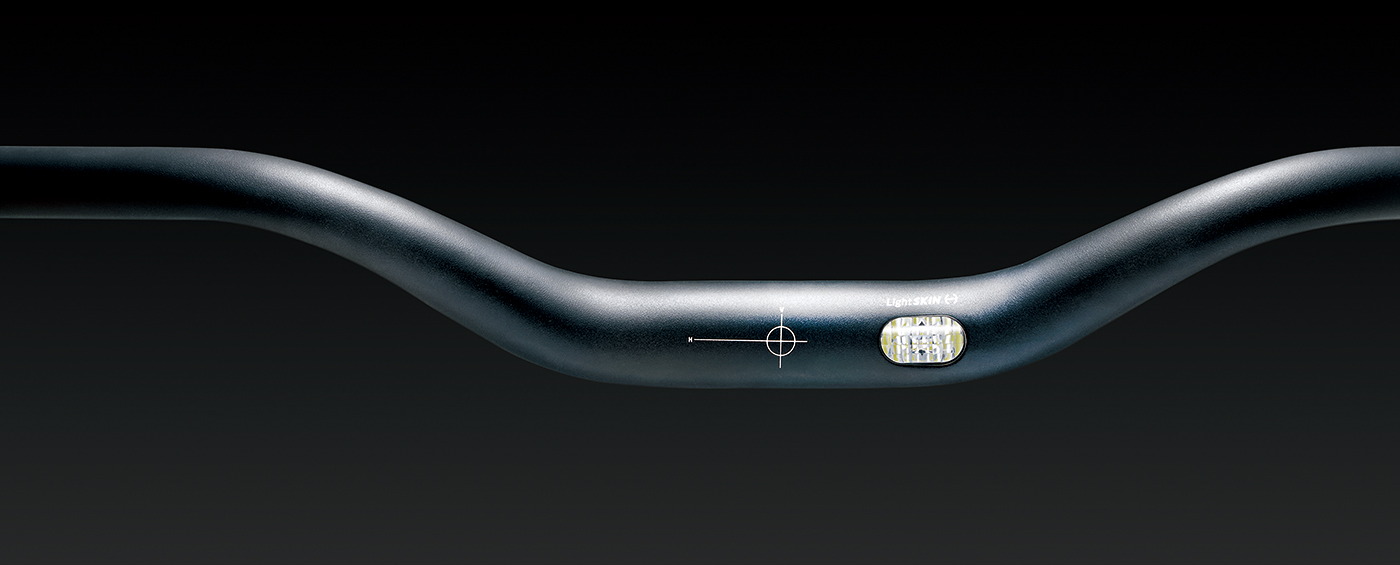

H1E FLAT D31.8 / W700
| Diameter | Center 31.8mm / Grip 22.2mm |
| Handlebar Widths | 600 / 620 / 640 / 660 / 680 / 700 (mm) |
| Bar Type | Back sweep 9˚, Up sweep 0˚, Rise ±5mm |
| Handlebar color and surface finish |
Anodized black / Polished silver |
| Handlebar material | Aluminum 6061 T6 |
H1E FLAT D35.0 / W800
| Diameter | Center 35.0mm / Grip 22.2mm |
| Handlebar Widths | 700 / 800 (mm) |
| Bar Type | Back sweep 9˚, Up sweep 0˚, Rise ±5mm |
| Handlebar color and surface finish |
Anodized black / Polished silver |
| Handlebar material | Aluminum 6061 T6 |
H1E WIEN
| Diameter | Center 31.8mm / Grip 22.2mm |
| Handlebar Widths | 640 / 680 (mm) |
| Bar Type | Back sweep 15˚, Up sweep 0˚, Rise 20mm |
| Handlebar color and surface finish |
Anodized black / Polished silver |
| Handlebar material | Aluminum 6061 T6 |
H1E CITY
| Diameter | Center 31.8mm / Grip 22.2mm |
| Handlebar Widths | 640 (mm) |
| Bar Type | Back sweep 38˚, Up sweep 0˚, Rise 40mm |
| Handlebar color and surface finish |
Anodized black / Polished silver |
| Handlebar material | Aluminum 6061 T6 |
H1E MOON
| Diameter | Center 31.8mm / Grip 22.2mm |
| Handlebar Widths | 620 (mm) |
| Bar Type | Back sweep 18˚, Up sweep 0˚, Rise 0mm |
| Handlebar color and surface finish |
Anodized black / Polished silver |
| Handlebar material | Aluminum 6061 T6 |
ETC
H1E DROP
| Handlebar test standard |
ISO-R |
| Compliant with standard or directive |
CE, RoHS, UN3481, StVZO §22a TA Nr.23 (Headlights for bicycles), IPX4 |
| Package Contents | Front light handlebar |
H1E FLAT
| Handlebar test standard |
EN17404, ISO 4210-Mountain, City |
| Compliant with standard or directive |
CE, RoHS, StVZO §22a TA Nr.23 (Headlights for bicycles), IPX5 |
| Package Contents | Front light handlebar |

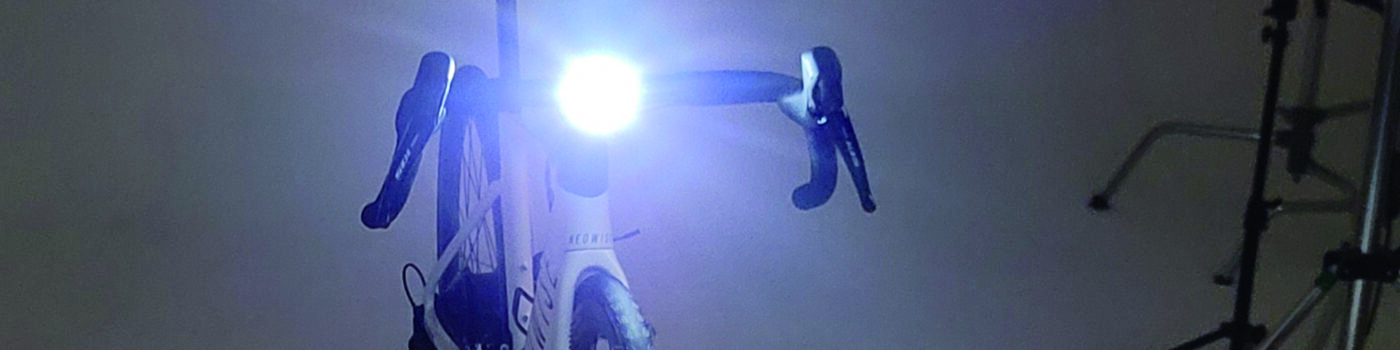

Put the H1 lens at the center of your design with dramatically improved brightness and performance.

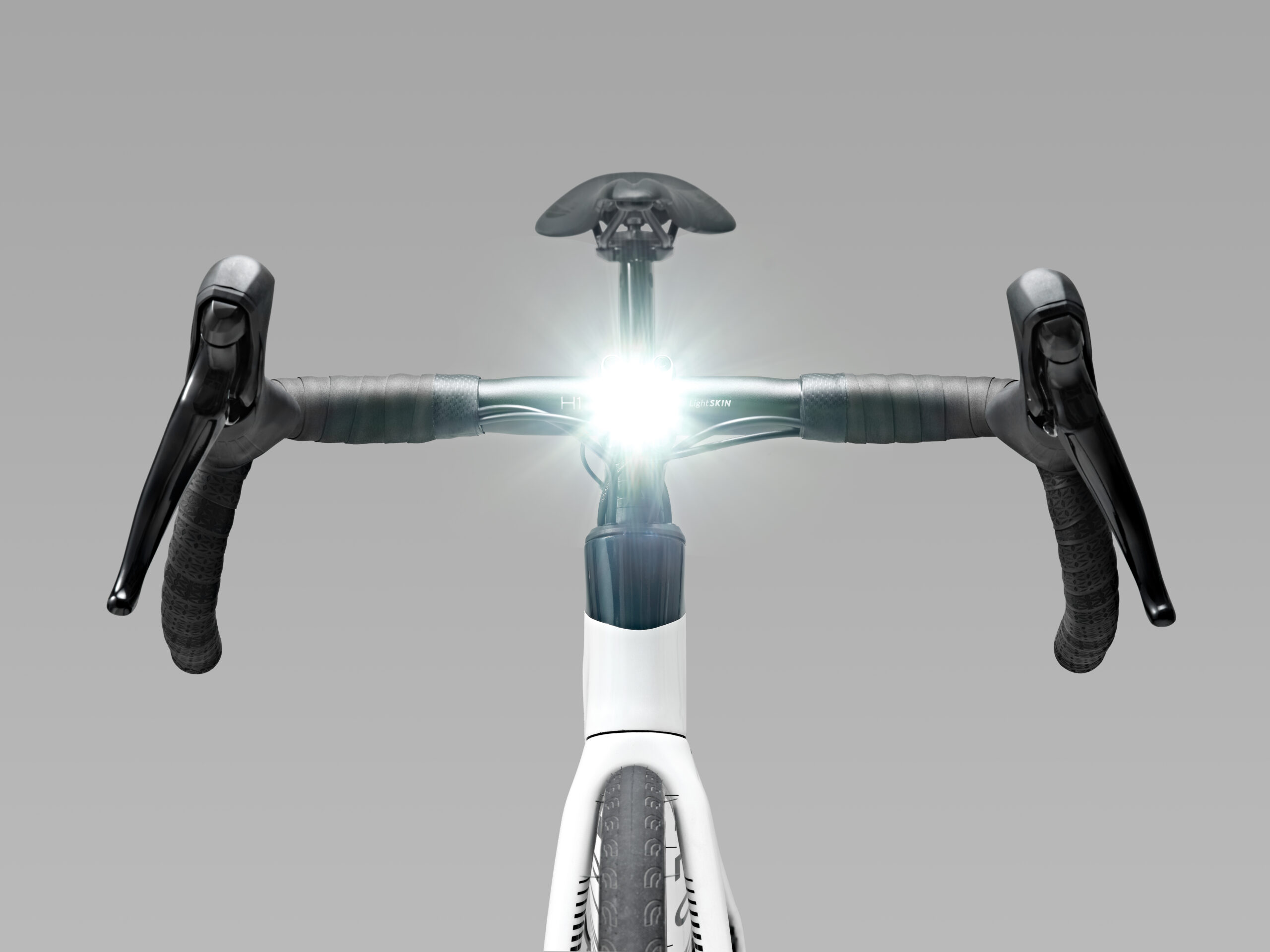

Our innovative front light is perfectly positioned in the center of your bike’s stem, providing flexibility for a variety of bike designs.
Enjoy the comfort of a symmetrical layout and the incredible performance of the H1 Hyper Lens.

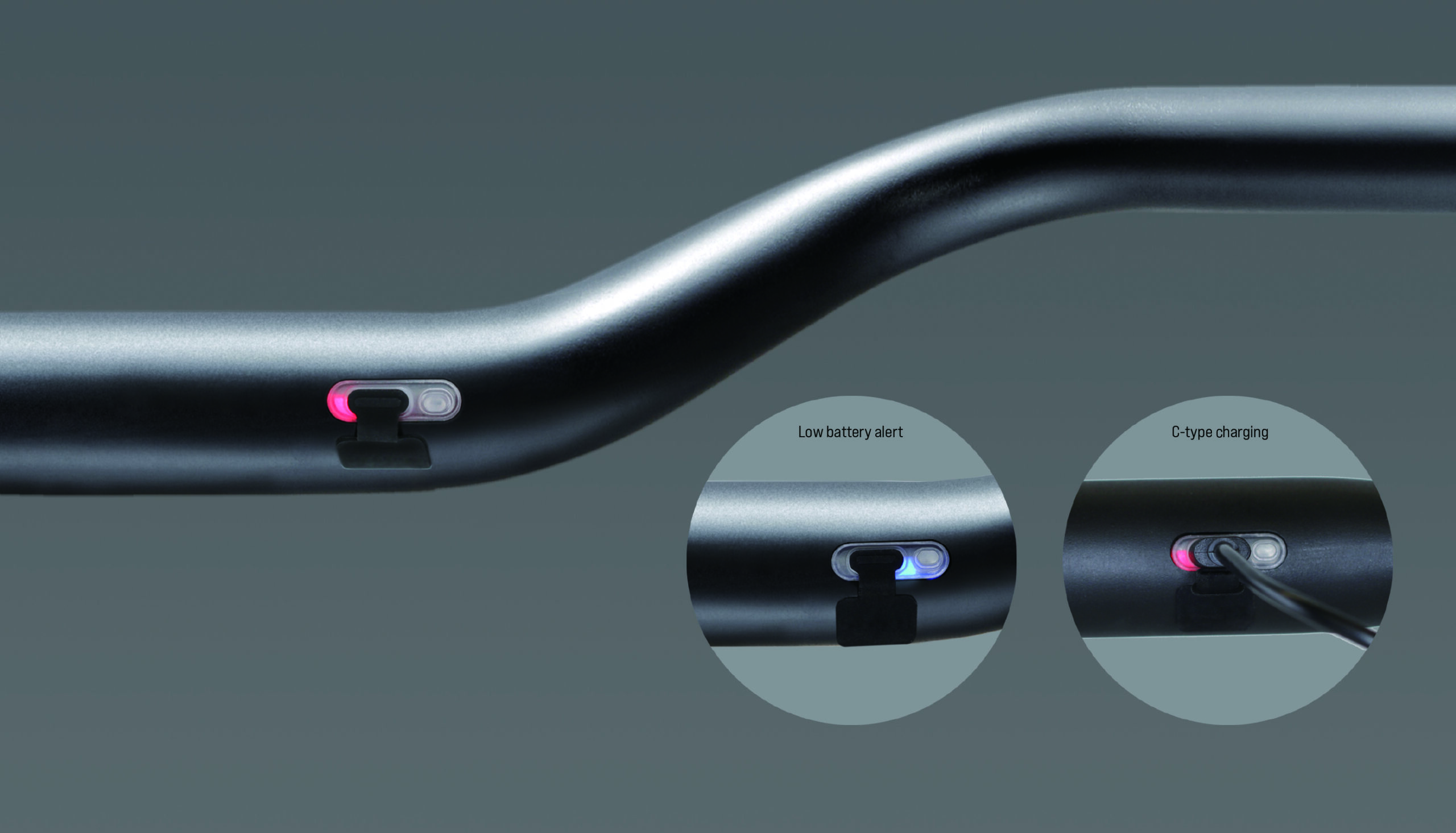

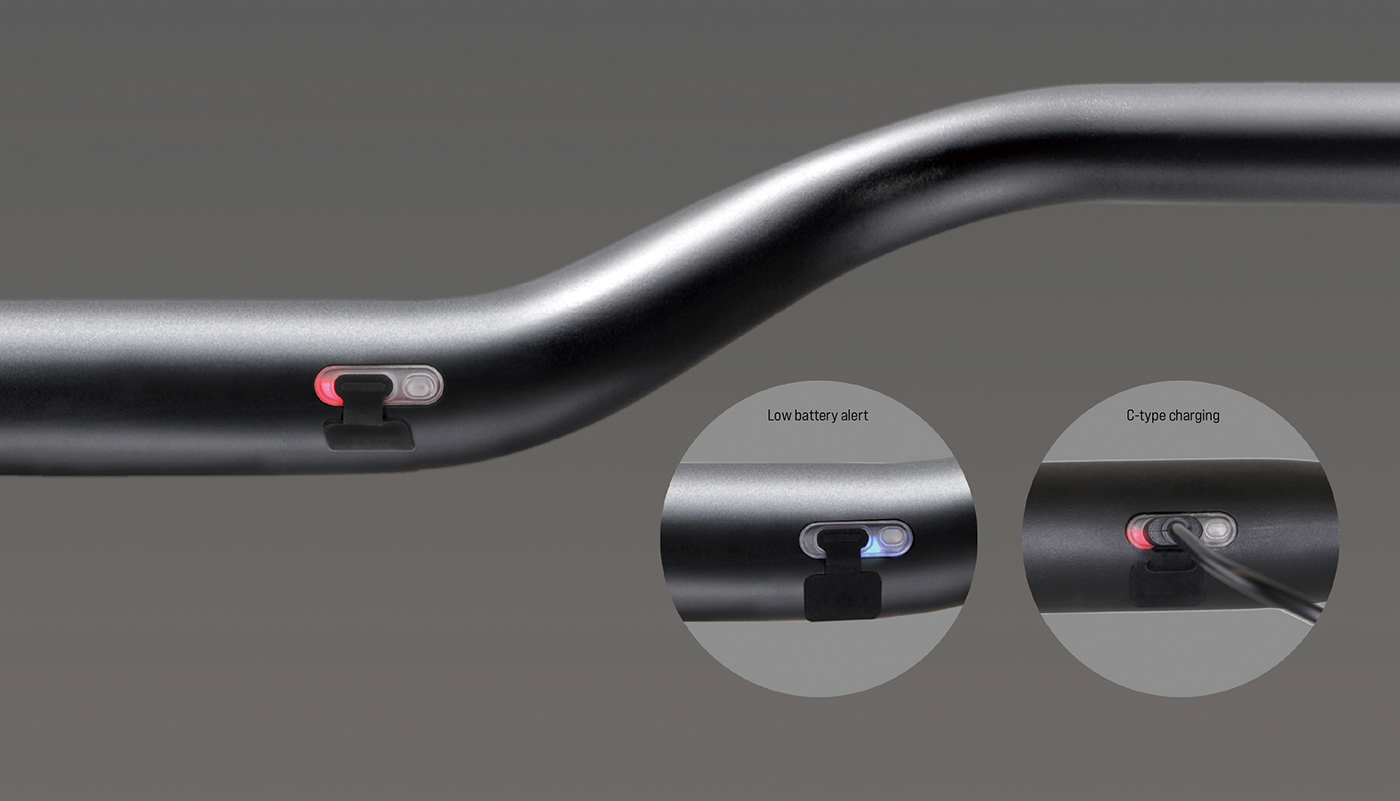

The H1B is the battery-integrated version of the H1E, upgraded with a USB-C charging port and equipped
with a powerful StVZO light module that is approximately twice as bright as the H2B.
