S341E
S341E
S341E
S341E

S341E

Powered by E-bike Battery
Non StVZO version (not availableon German Road)
non-protruding lenses



Check the guideline Before you buy E-bike type

diameter: 27.2

length: 350

color: matt black

$90.00

In stock, ready to ship

1. Delivery Information (International Shipping)
Processing Time: Your order will begin processing and dispatch starting on the 3rd business day following order confirmation.
Delivery Time: Delivery typically takes 5–7 business days from the date of dispatch, depending on the destination address.

2. Returns and Refunds (Important Notice)
PLEASE READ CAREFULLY BEFORE PURCHASING

Our pricing is based on a "Shipping Fee Included" condition, meaning the actual international shipping cost to deliver the product to you is initially covered by the seller. Due to the high costs associated with international freight, our return policy is as follows:

Return Shipping Cost: The customer is responsible for all return shipping charges. All returns must be sent prepaid.

Refund Deduction Warning: Your final refund will be the original purchase price minus the actual international shipping cost that the seller initially incurred to send the item to you.

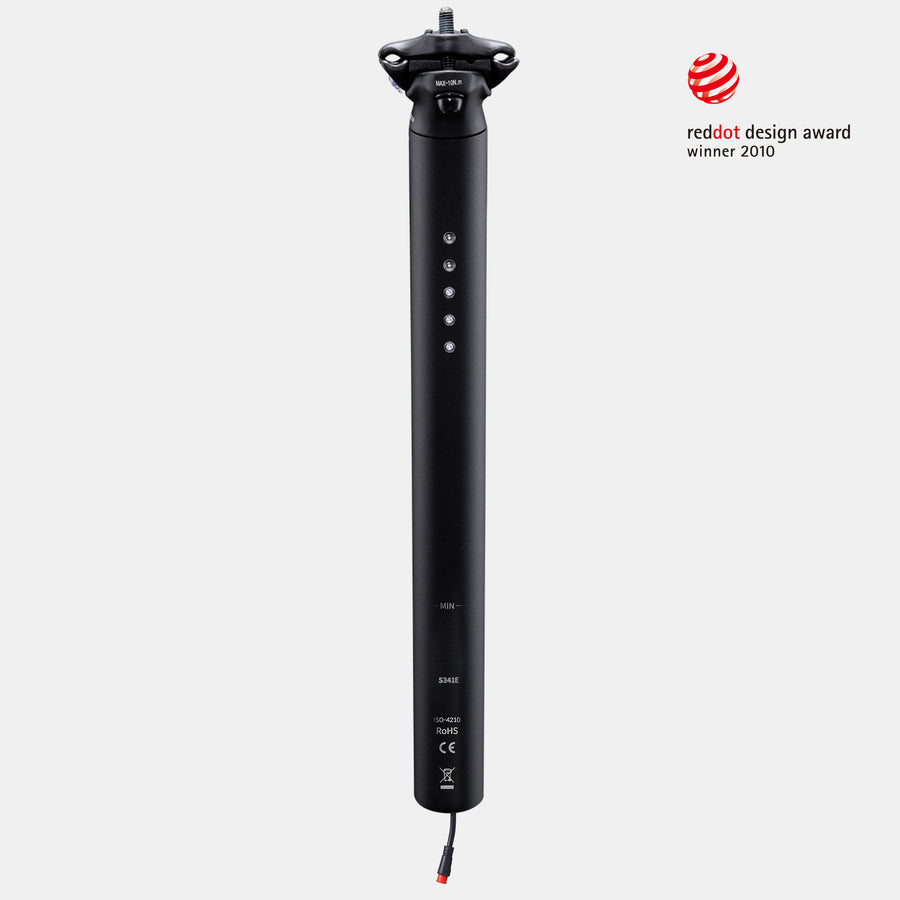

Patented seatpost with an integrated seat rail clamp. The seatpost tube features 5 holes in which the LEDs are enclosed. A cable with a connector extends out of the lower end of the seatpost tube for connection to the electrical system of the e-bike.

  • Diameter (㎜) : 27.2 / 30.9 / 31.6
  • Length (㎜) : 350 (D 27.2 / D 30.9 / D 31.6)
    400 (D 31.6)
  • Color surface finish : Polished Silver / Matt Black
  • Seatpost Type : 2 bolt clamp, offset 9mm
  • Seapost material : Aluminum 6061 T6

  • Lens Type : Non Protruding
  • Light Module : 5 high brightness red LEDs
    Non protruding LED Lens
  • Brightness : 15 cd
  • Power source : The on-board battery of the e-bike.
  • Nominal voltage : DC 6V (5V-12V)
  • Power consumption : 0.3W

  • Seatpost test standard : EN 15194
  • Compliant with standard or directive : CE, RoHS, IPX5

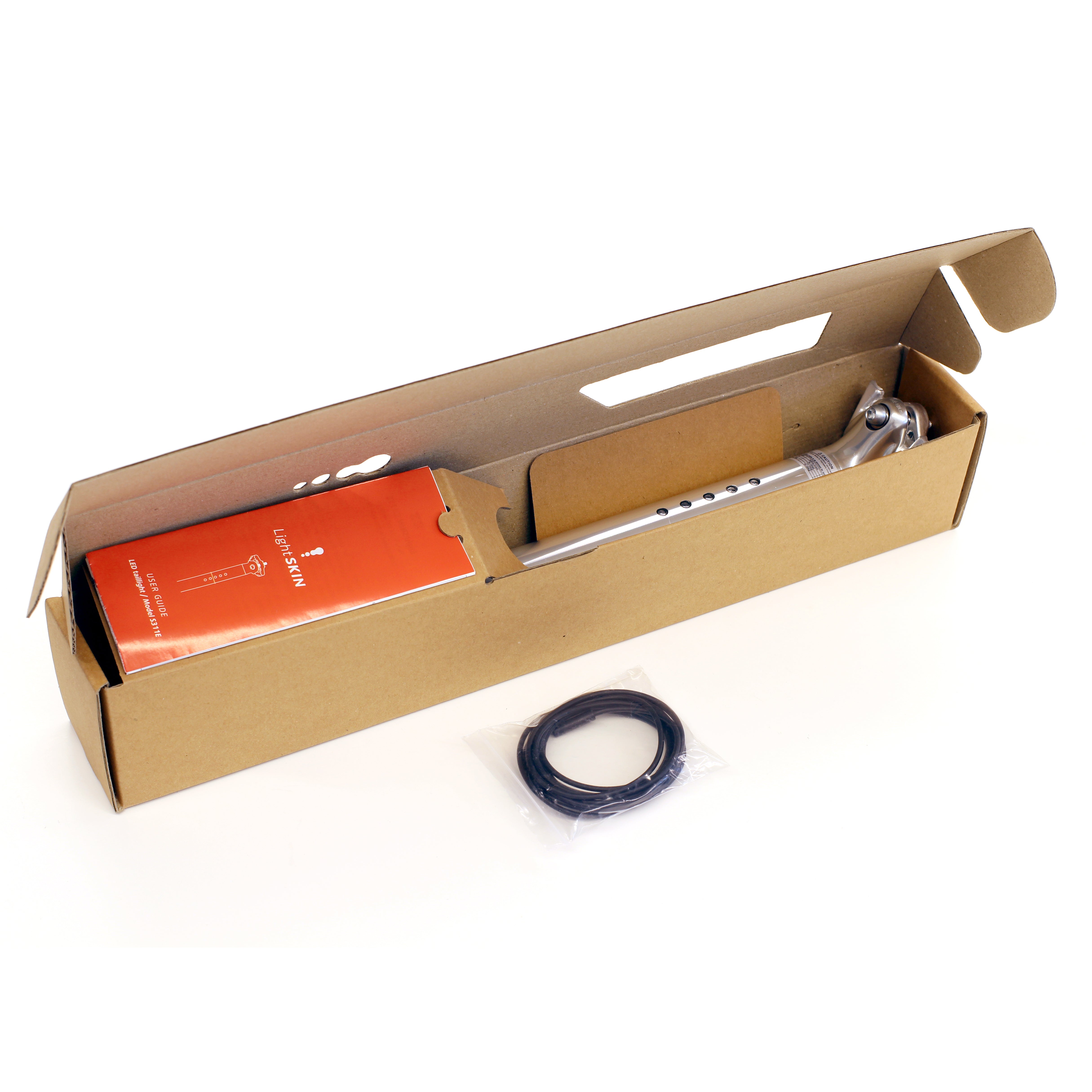

  • Package Contents : Rear light seatpost, 800mm extension cable

The rear light is operated by the light switch of the e-bike system.

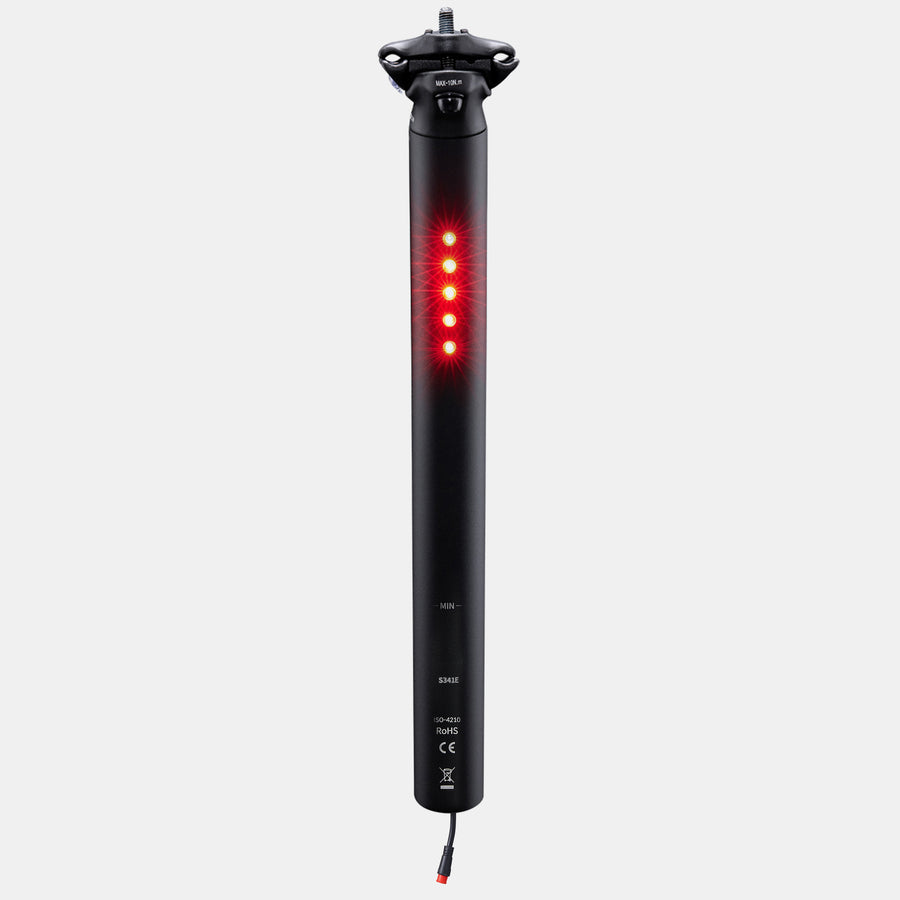

When switched on, all 5 LEDs light up.

Secure online shopping
PayPal

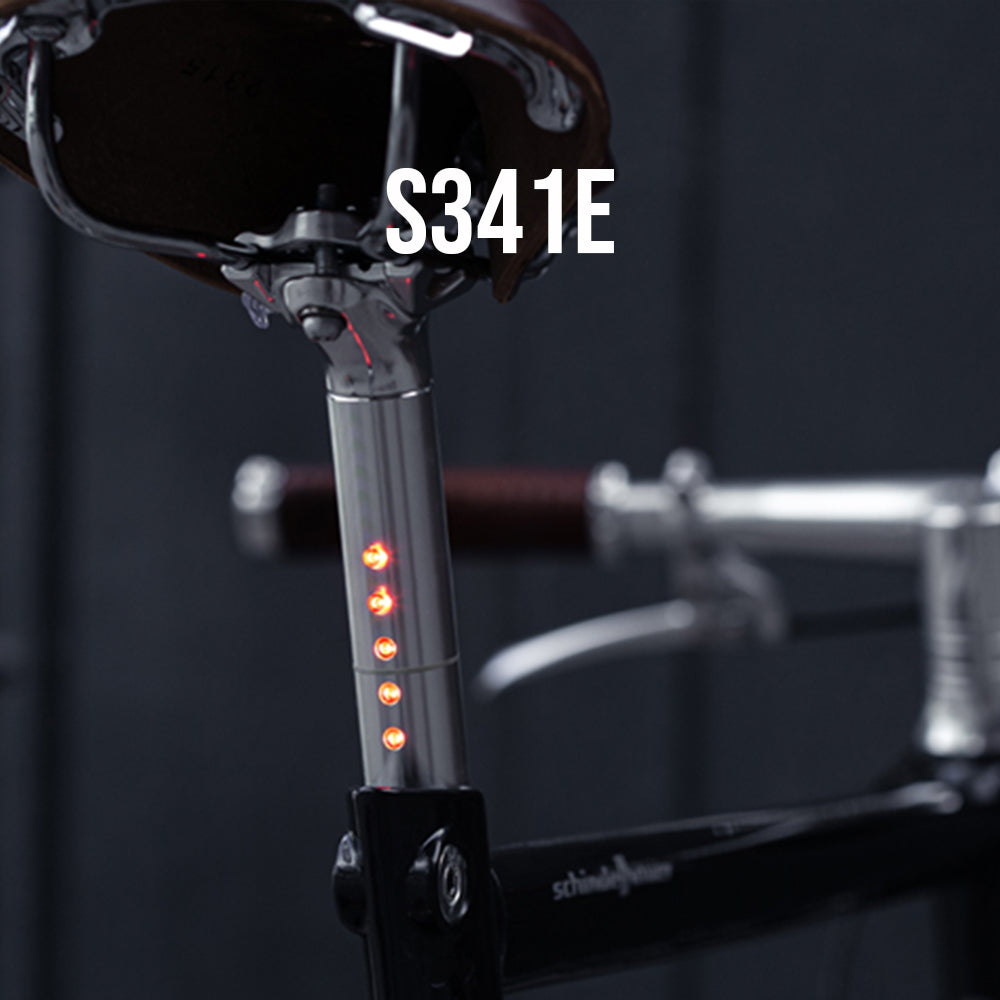

The Details

  • Diameter:

    27.2mm ⁄ 30.9mm ⁄ 31.6mm

  • Seatpost Length:

    350mm (D 27.2 ⁄ D 30.9 ⁄ D 31.6), 400mm (D 30.9)

  • Seatpost Type:

    2 bolt clamp, offset 9mm

  • Seapost material:

    Aluminum 6061 T6

  • Brightness :

    15 cd

  • Power Source:

    The on-board battery of the e-bike.

S341E

In the S341E version, the light is powered via a cable connected to an external power source (e-bike’s battery).

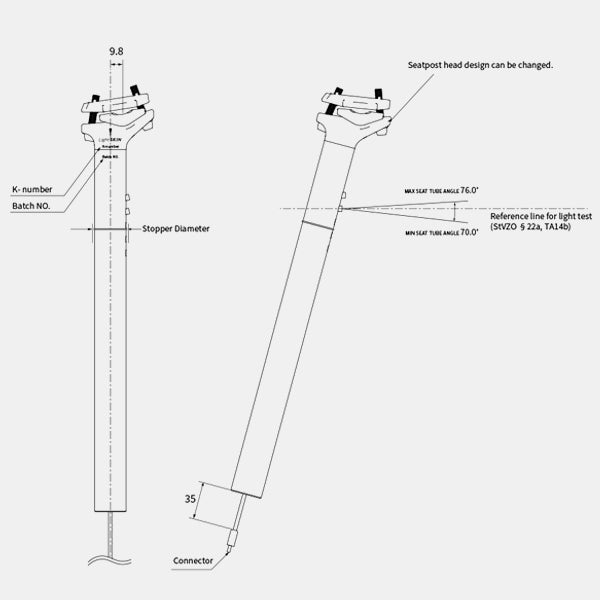

StVZO version available in Germany, light will be always on mode when turn on the light thru e-bike computer. S341E has the top two lenses protrude, a side view is always provided for safety. The StVZO version restricts the minimum insertion position so that the mechanical stopper does not go down any further as the top three lenses must always be exposed.
Please purchase after checking the compatibility of the connector in the battery part of your electric bicycle. If you need an extension cable, please send us a message in the contact us window.

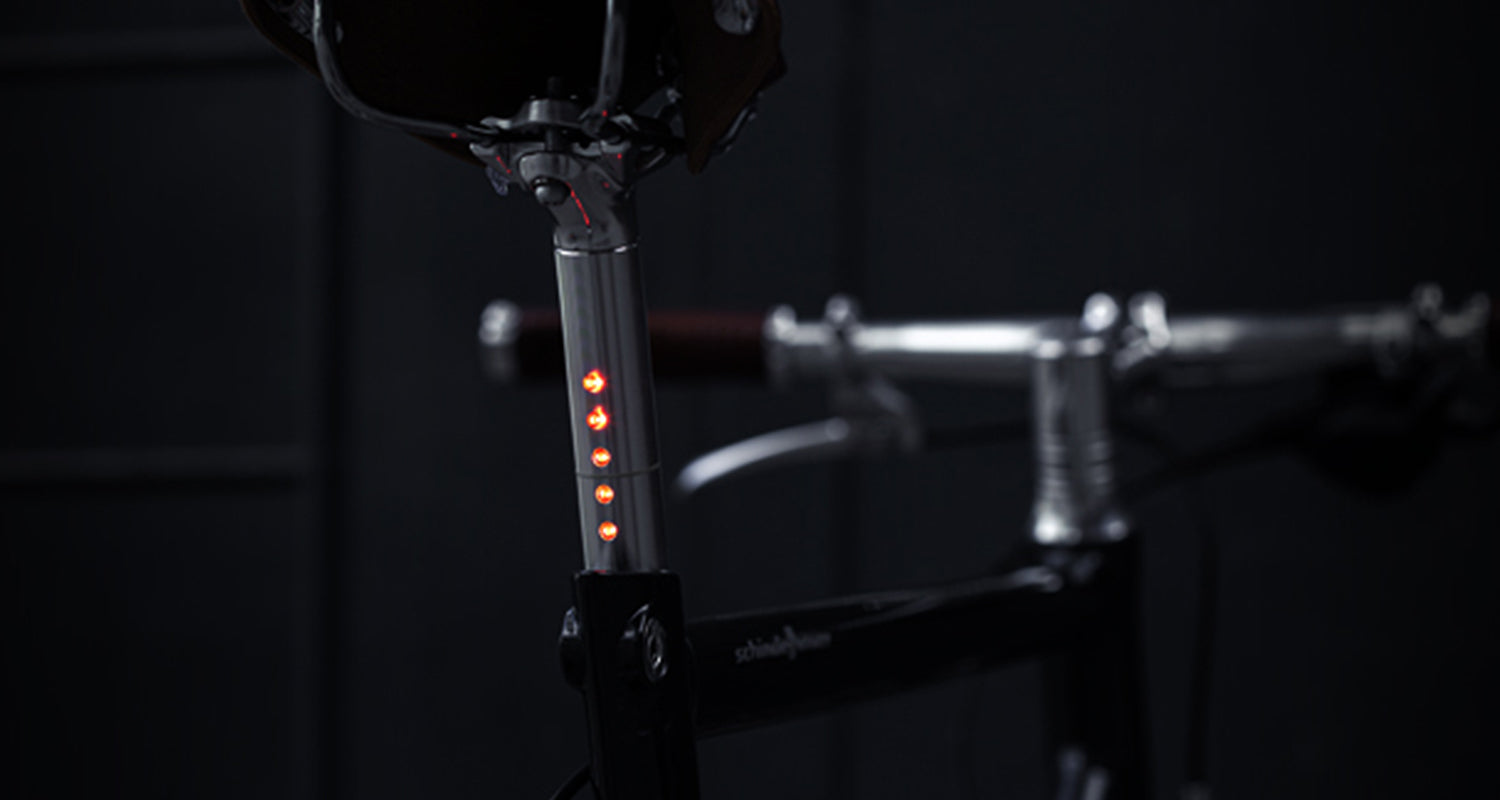

5 Flush LED make bike look neat and simple, patented seatpost with an integrated seat rail clamp.

5 Flush LED make bike look neat and simple, patented seatpost with an integrated seat rail clamp.

The seatpost tube features 5 holes in which the LEDs are enclosed. A cable with a connector extends out of the lower end of the seatpost tube for connection to the electrical system of the e-bike.

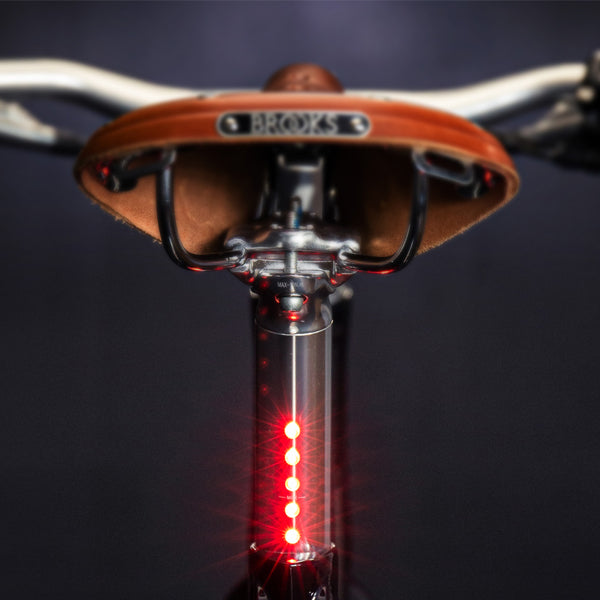

Integrated lights

Lights are in frame. Light skin’s special design brightens the way ahead.
Turn them on and off with a simple tap. Be seen by others on the road, everaware of your surroundings.

5 LEDs with integrated electrical light control and battery management system.

The two upper LEDs are protruding, also ensuring the lateral emission of light. The lower 3 LEDs are sunk into the seat post tube. The LEDs, circuit board and battery are enclosed in a plastic housing and are thus protected. (dust and splash proof in accordance with IPX5).

Operating Conditions & Compliance

Operating temperature
 · Min.: -15°C, Max.: 45°C
· Optimum storage temperature: 20-25° C

Compliant with standard or directive
 · RoHS, UN3481, StVZO §22a TA 14b (Bicycle rear light), IPX5

Compared to existing bike lights that are attached externally, LightSKIN has numerous advantages.

There is no extrusion, so there is less risk of breakage and less possibility of theft. It guarantee superior performance and the resistance to amage by water is excellent because of adoption of the LED circuit self-invented in South Korea and a unique patent internal structure.


ASSEMBLY

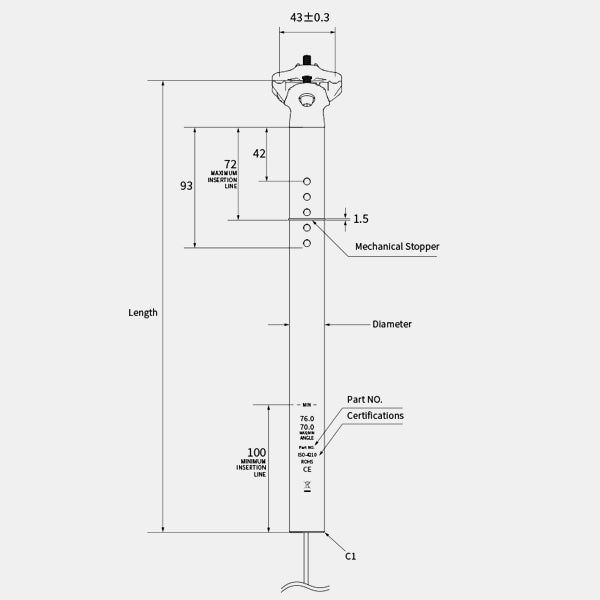

Use the correct diameter corresponding to your bicycle frame. Use the appropriate tool to fasten the saddle support. The minimum insertion length into the frame is 100mm. The rear light must be aligned so that it shines backward. The connector of built-in light seatpost and the connector of power source should be compatible, which must be ascertained before the purchase of the product.

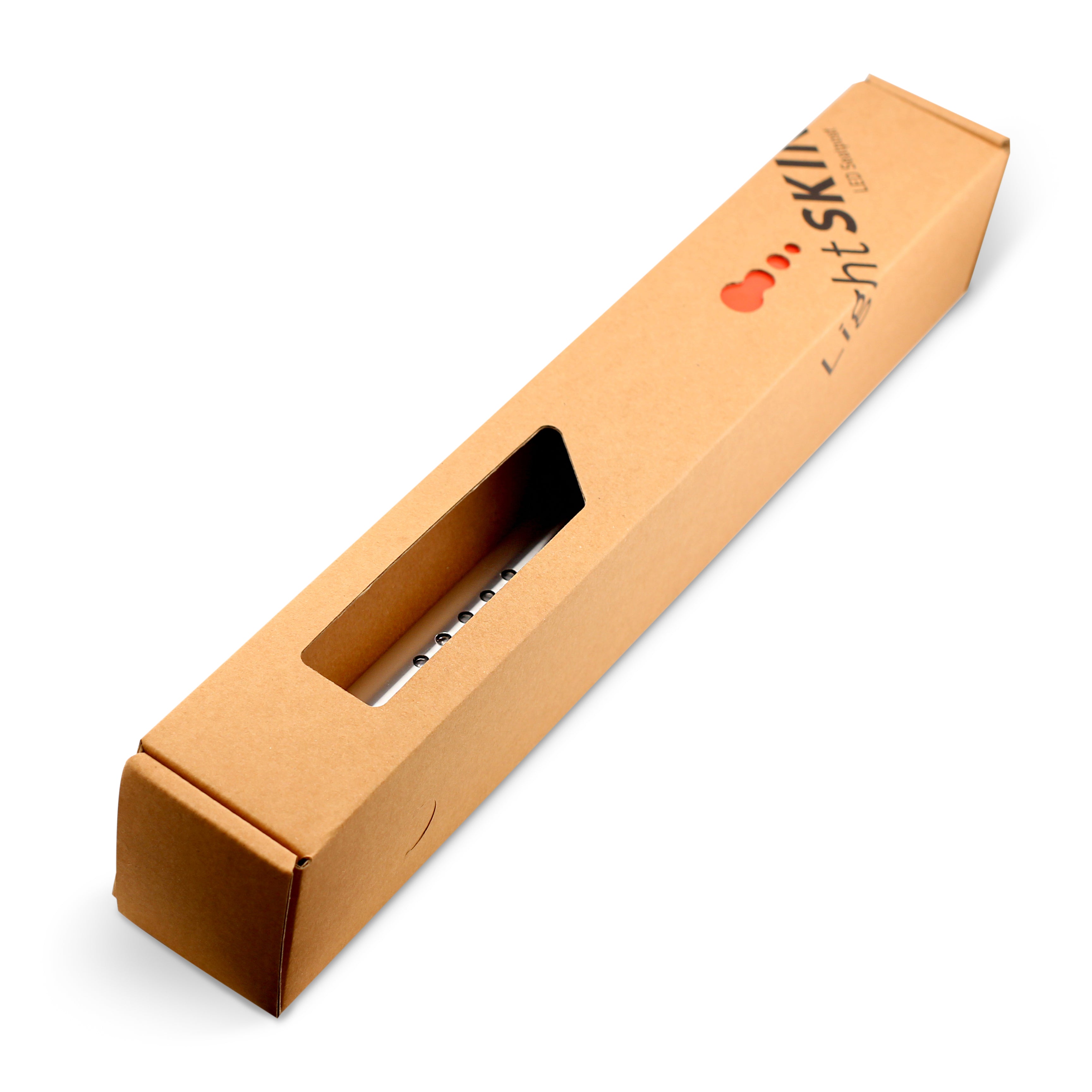

S341E Shipping

Shipping Weight

  • 27.2 – 350L : 0.62kg
  • 30.9 – 350L : 0.63kg
  • 30.9 – 400L : 0.68kg
  • 31.6  – 350L : 0.64kg

Shipping Dimension

430*65*80

Safety instructions

At startup, the product must be dry. Remove any moisture before riding. After installation, test that the seatpost does not drop under load. Take care that the LEDs are not covered by a bag or clothing when riding. Do not make any independent changes to the product. Do not try to open the product.
