ZR

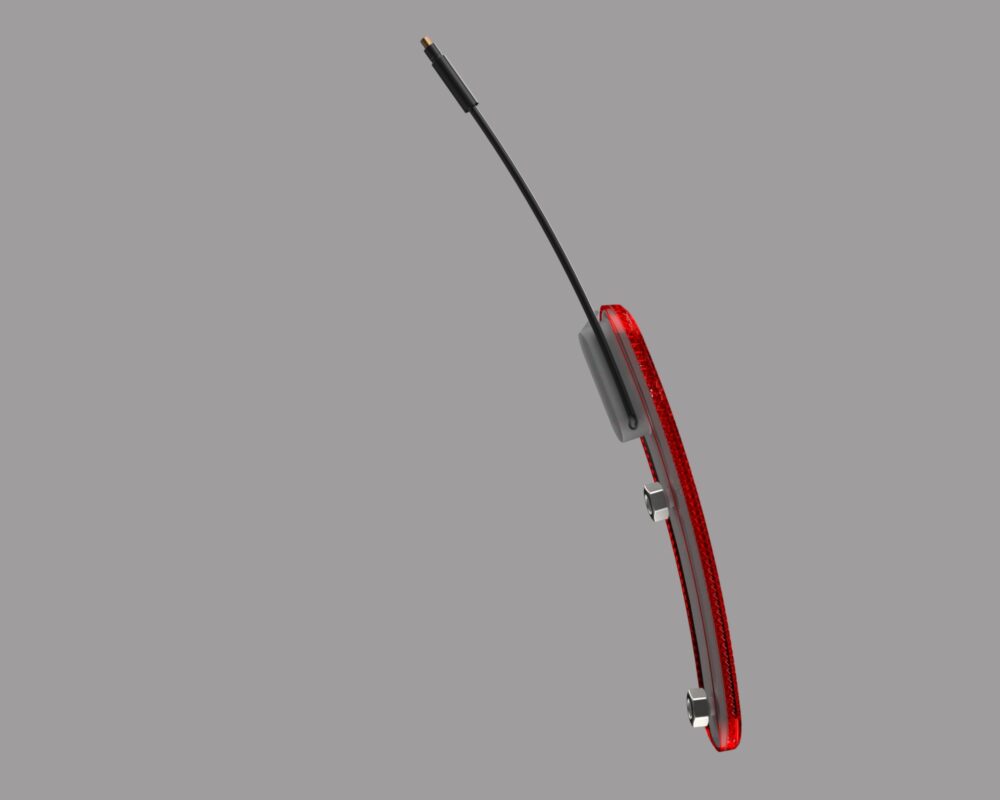

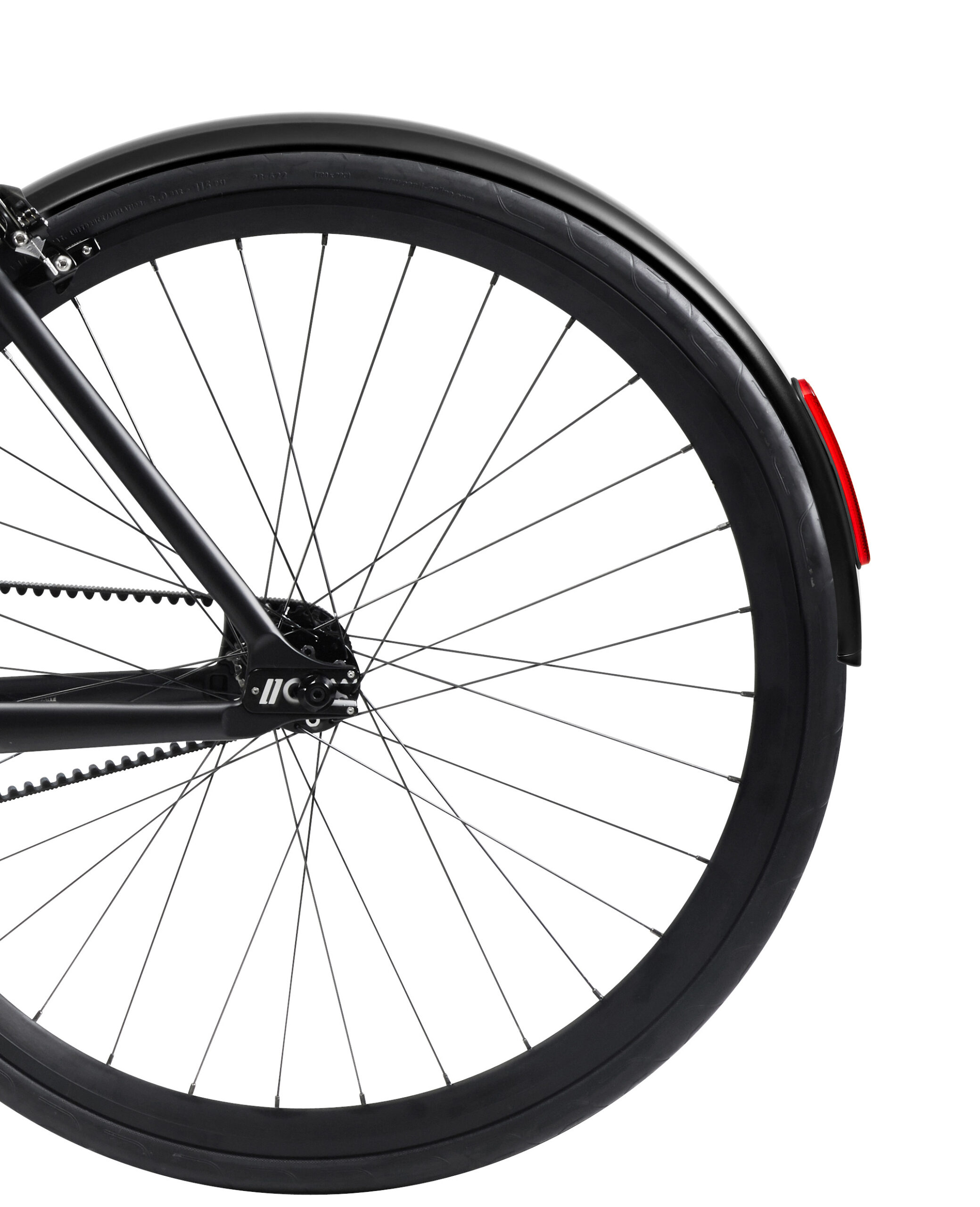

The LightSKIN ZR is a curved reflector designed for bike fenders that integrates a rear light. The advantage of its curved design is that it perfectly matches the curved surface of the bicycle fender, greatly enhancing the bicycle’s overall design. ZR almost does not protrude and adheres closely to the fender, so it is less likely to break, is safe and can be used for a long time. Existing reflectors have a flat shape to maximize reflection efficiency, but LightSKIN has created a rearlight integrated reflector with a curvature of 1.62/m through precise processing and clever optic design. The ZR has passed StVZO regulations for both reflectors and rear lights.


Rear light + Reflector
integrated in one



Rear light + Reflector
integrated in one

Features

Dimension 128.2mm x 22.6 mm x 14.6mm
Material Refelctor=PMMA
Weight 40gram

Light unit

Light Modul 2 high bightness red leds
Brightness 12cd
Power Source DC 5~24V
Power consumption 0.4W
Light Modul 2 high bightness red leds
Brightness 12cd
Power Source AC6V
Power consumption 0.3W

ETC

K-number K 2135(Rearlight), K 2136(Reflector)
Compliant with
standard or directive
CE, RoHS, UN3481,
StVZO §22a TA Nr.14b(Rearlight)
StVZO §22a TA Nr.18(Reflector)
IP66
Contents Rear light integrated reflector for bike fender
* fender not included

ZRE / ZRD

In the ZRE version, the light is powered via a cable connected to an external power source.
In the ZRD version, the light is powered by a hub dynamo.
