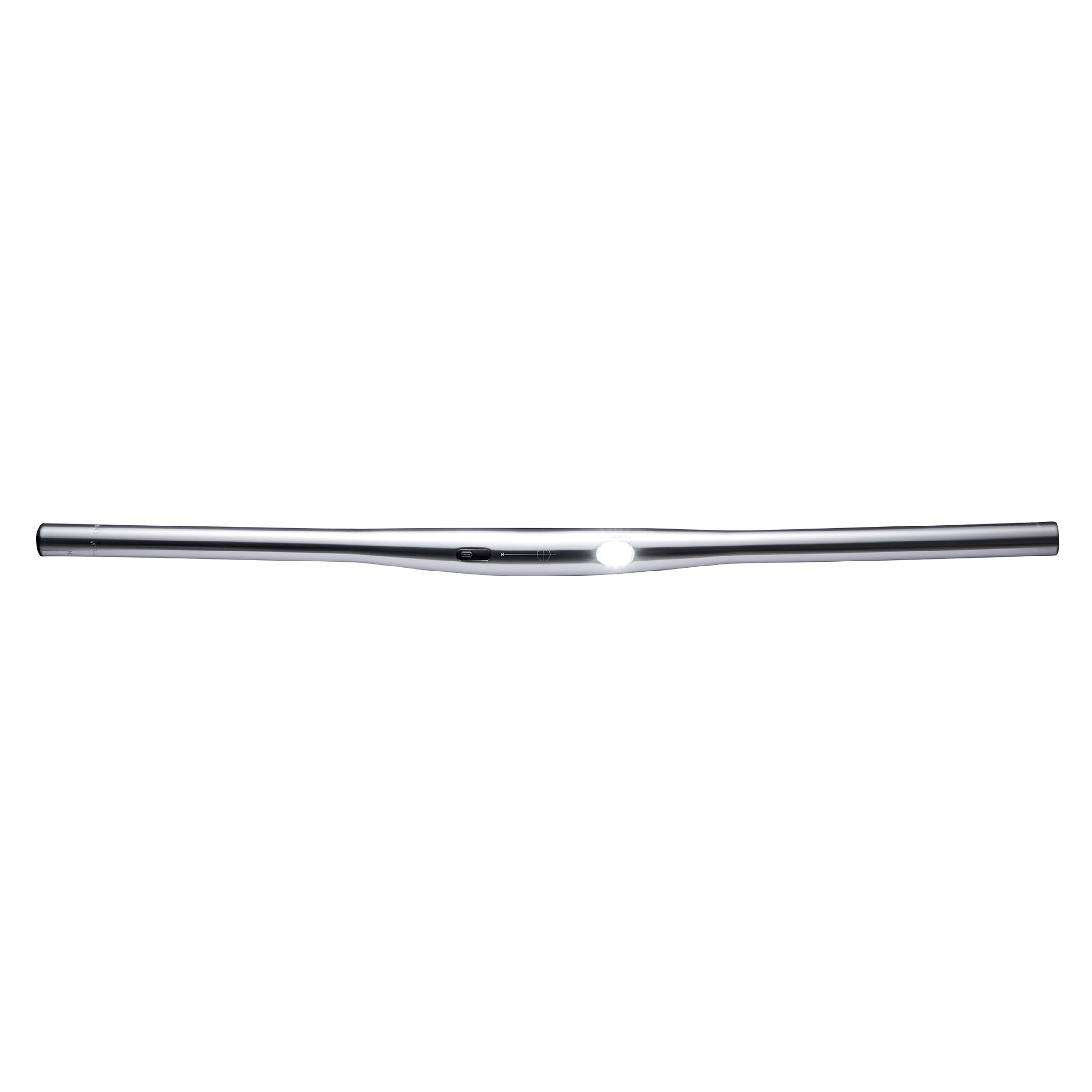

HANDLE BAR - H241
The H241 is a powered by a built in, non-removable, rechargeable battery.
This is a product that is charged with the included 2m long charging cable.
H241 is international version, provides continuous mode and flicker mode. ,it can be used in international countries except Germany.
Features

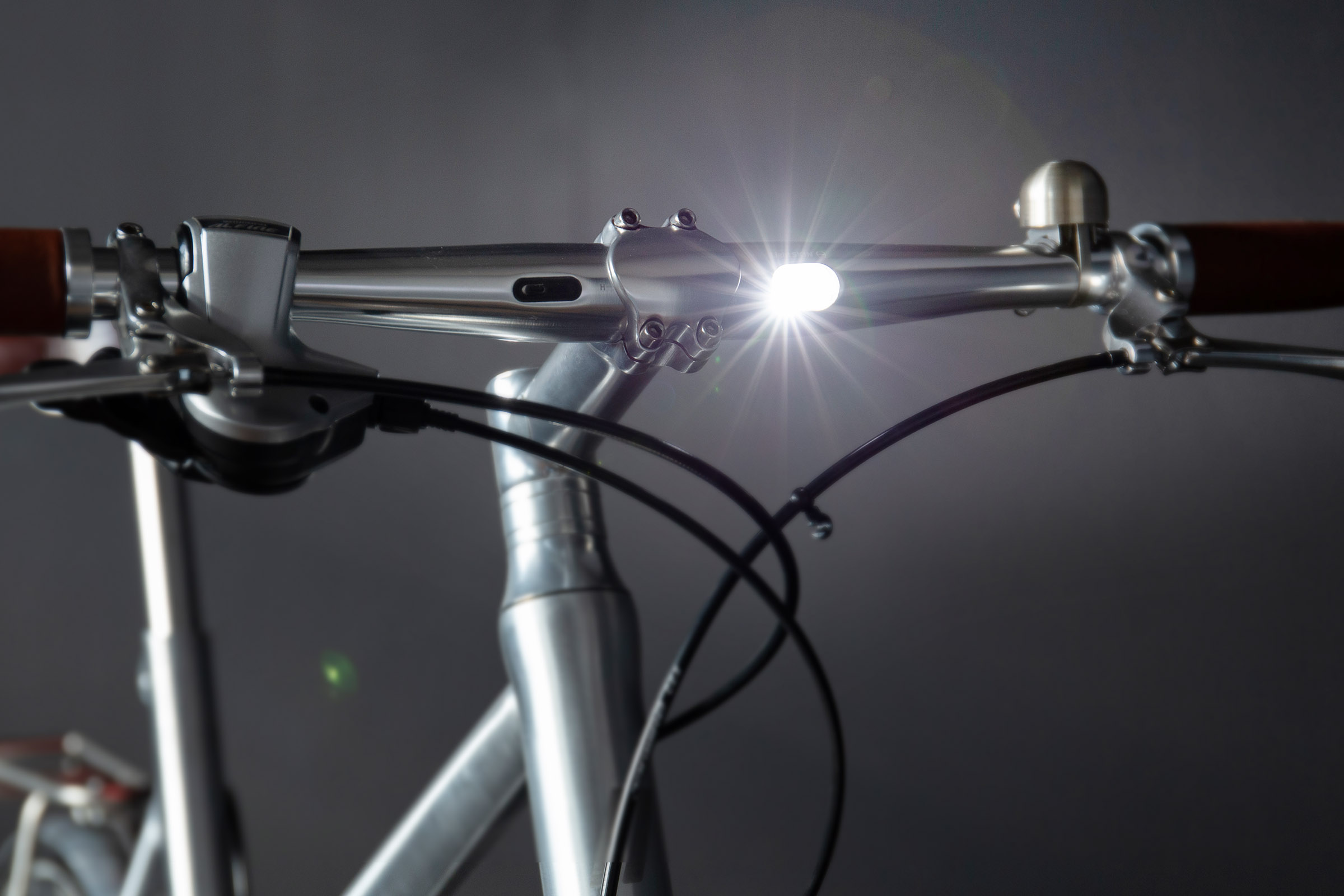

The handlebar has at least one drilled or milled out hole in which the headlight lens is integrated. Depending on the version, there may be an additional hole for the power supply. In addition, the headlight (LED, lens and circuit board) is built into the handlebar in such a way that it is protected from the elements. The handlebar is sealed so that water cannot enter.
| Diameter (㎜) | Center 31.8 / Grip 22.2 |
| Handlebar width (㎜) | 620 / 640 / 660 / 680 / 700 |
| Bar Type | Flat, Back sweep 6˚ , Up sweep 0˚ , Rise ±5㎜ |

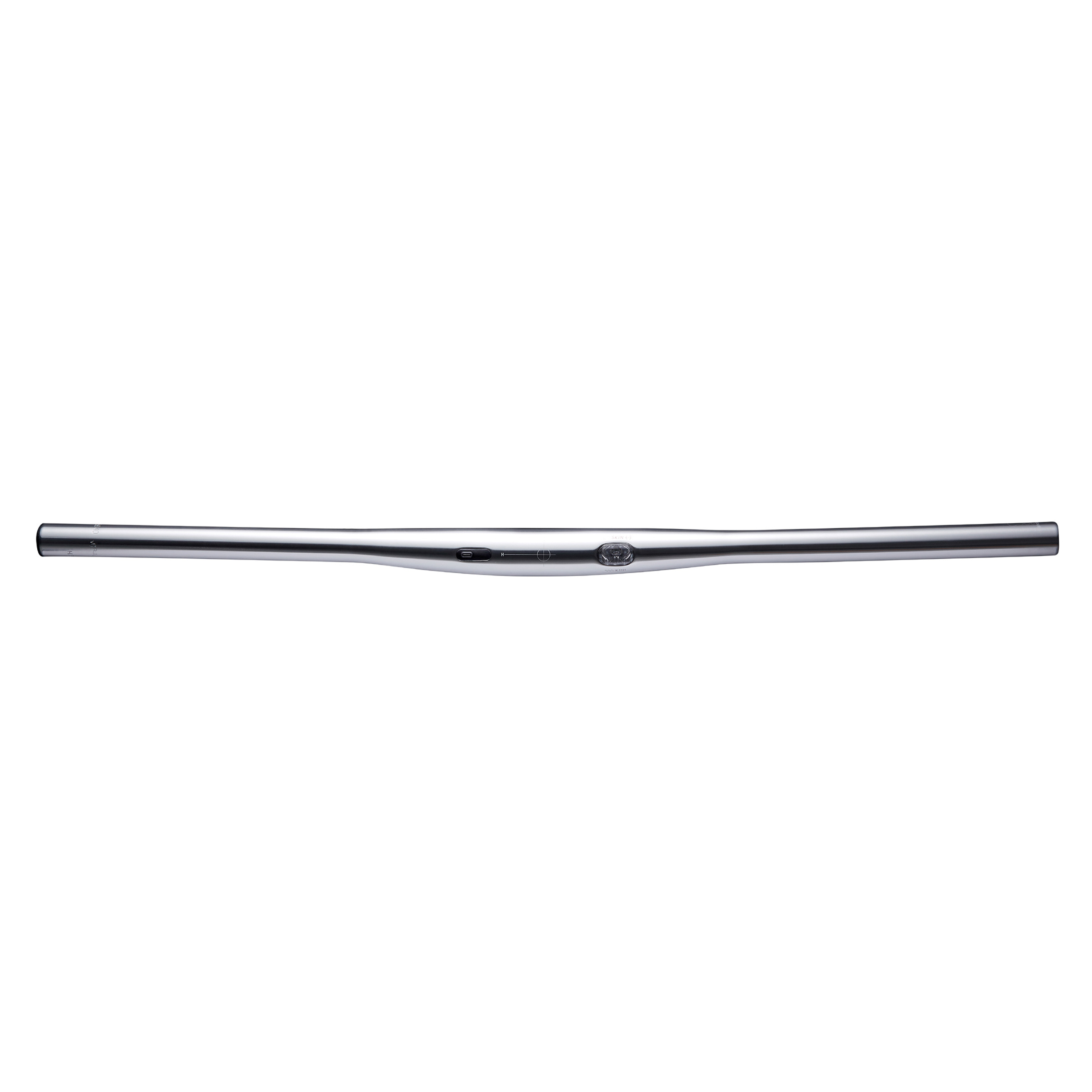

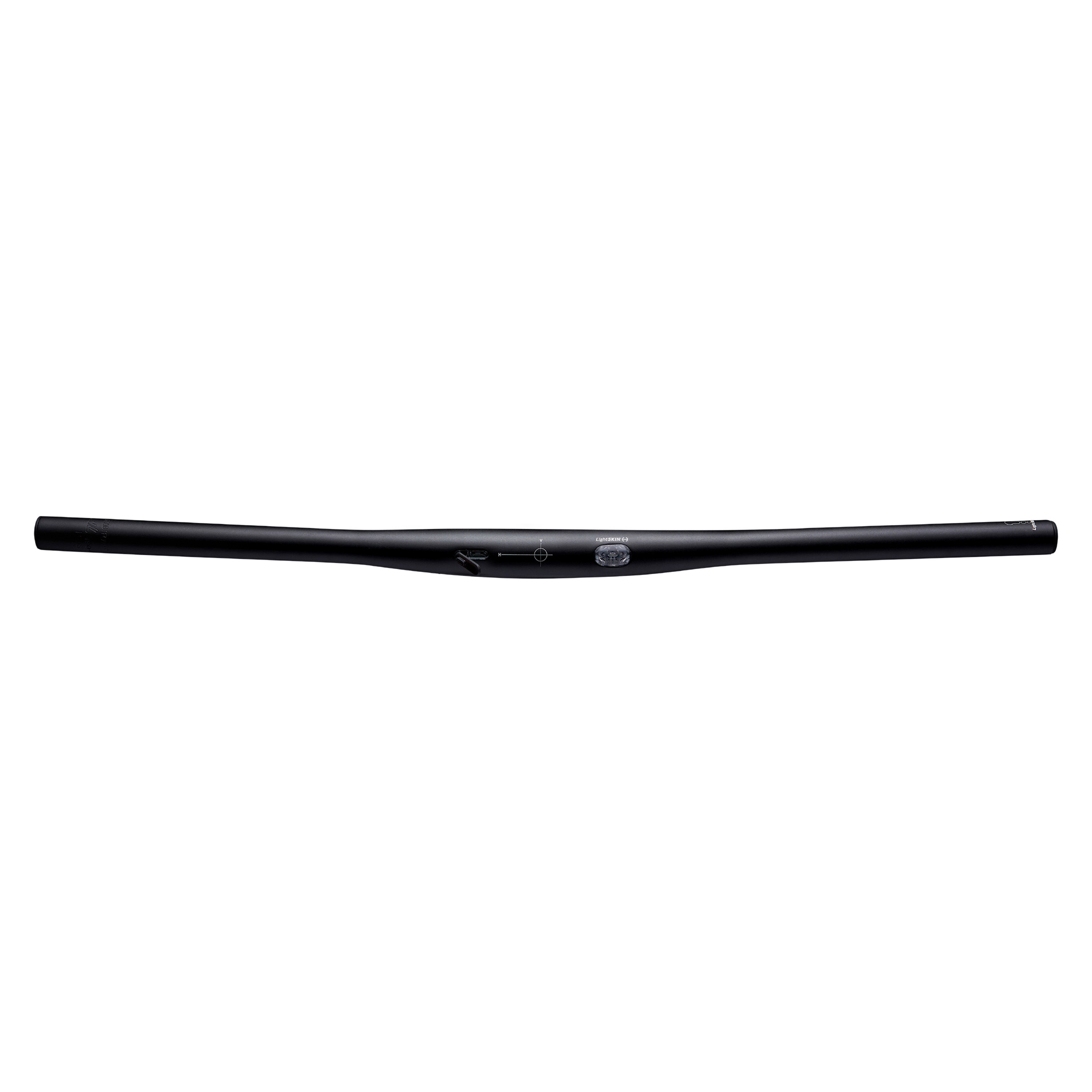

| Handlebar color and surface finish | Polished Silver / Matt Black |
| Handlebar material | Aluminum 6061 T6 |
ETC
| Handlebar test standard | ISO 4210 Mountain, City |
| Compliant with standard or directive | CE, RoHS, UN3481 |

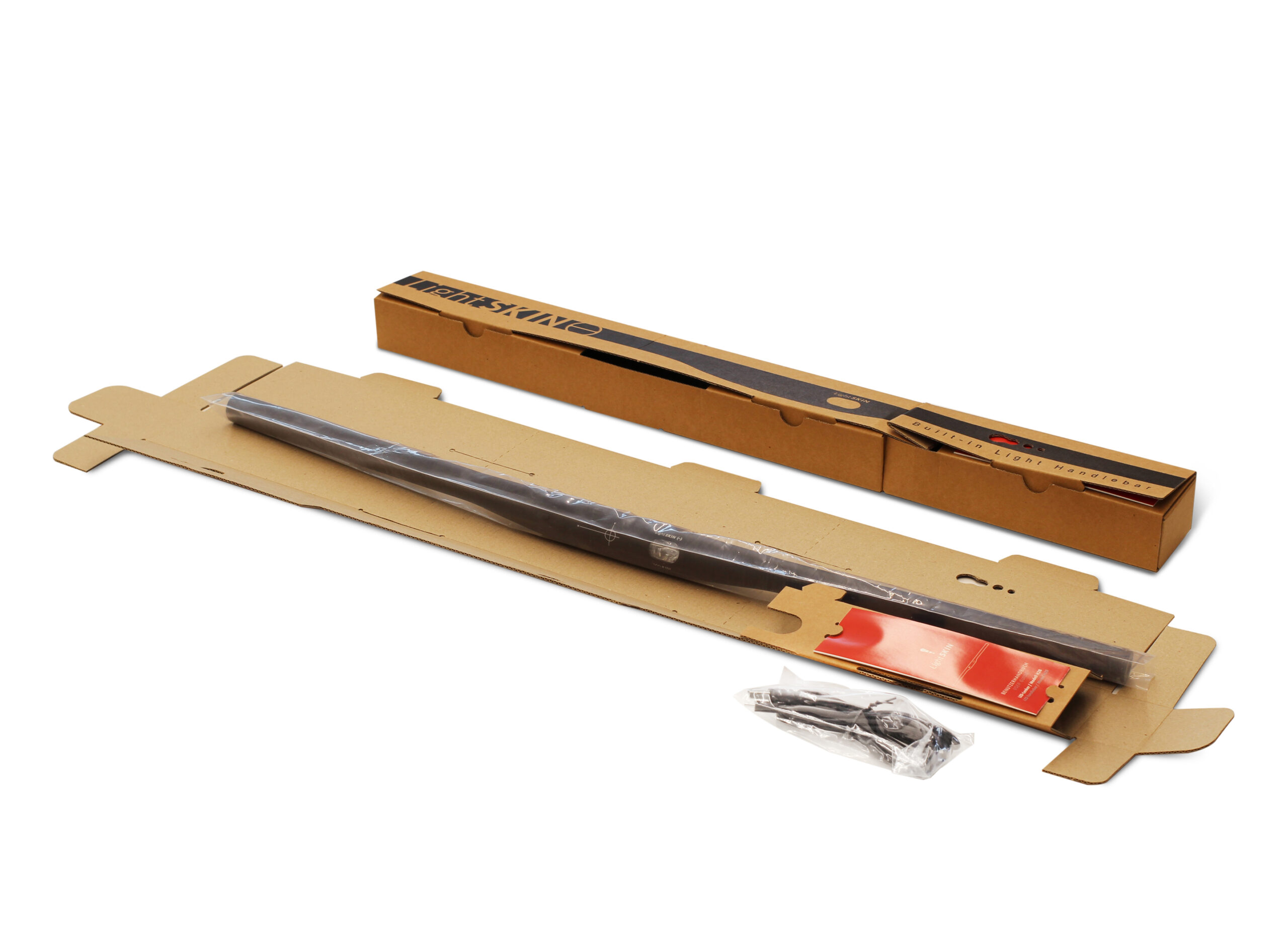

| Package Contents | Front light handlebar, USB charge cable (200cm) |
Function
Light unit
| Light Module | LightSKIN H2 Lens |
| Luminous flux | 150lm |
| Power source | Lithium-polymer battery 3.7V, 2000mAh, 8018120 with protection. |
| Light Duration (fully charged battery) | Extra bright: 4h Bright: 6h Flicker: 8h |
| Charging Time | 5h |
MICRO USB 2.0 CHARGING
In order to reach the full load capacity, it takes between 4 and 5 hours. During charging, the button cap flashes in RED. The flashing stops, changes to continuous red light on when the battery is completely charged. When the battery is fully charged, remove the cable from the USB port. Should the product become excessively hot during charging, stop the charging process. Never charge the battery when the USB port is wet. Full charge and discharge cycles 500.
Charge state
Low battery alert : Indicated by a blue LED integrated into the micro-USB socket.
As soon as this LED lights up, the battery still has enough capacity to power the LEDs for 1 more hour in accordance with the regulation. The micro-USB port is covered with a semi-transparent silicone cap so that the blue LED is visible and the port protected from the elements.
| Steps to take inthe event of a failure | If the headlight fails, it must be immediately replaced. |
| USB port | Do not pull on the charging cable excessively. We recommend using the supplied USB cable to ensure proper battery charging. If the USB connector is exposed to heat, it may lose its shape. |
| Operating Temperature | Min : -15° C Max : 45° C Optimum storage temperature : 20-25°C |
2 years from the date of purchase.
In case of warranty, (replacement or repair), please contact the distributor through whom the product was purchased.
Old appliances and batteries must not be disposed of with normal household waste.
According to EU Directive 2012/19/EU, the product must be disposed of properly at the end of its service life. Return the old device to a collection point for electronic waste or a recycling center
Returns :
When returning the product, please contact the seller first to discuss the reason for return, delivery fee, shipping address, and etc. and then send the return product.
Please send us unused products by prepaid, will refund you after confirming arrival.
Exchanges :
Please send us unused items by prepaid, and send $60~70 re-delivery courier fee depending on your location. After receipt the goods and courier fee, we will replace it with another product.
