Features

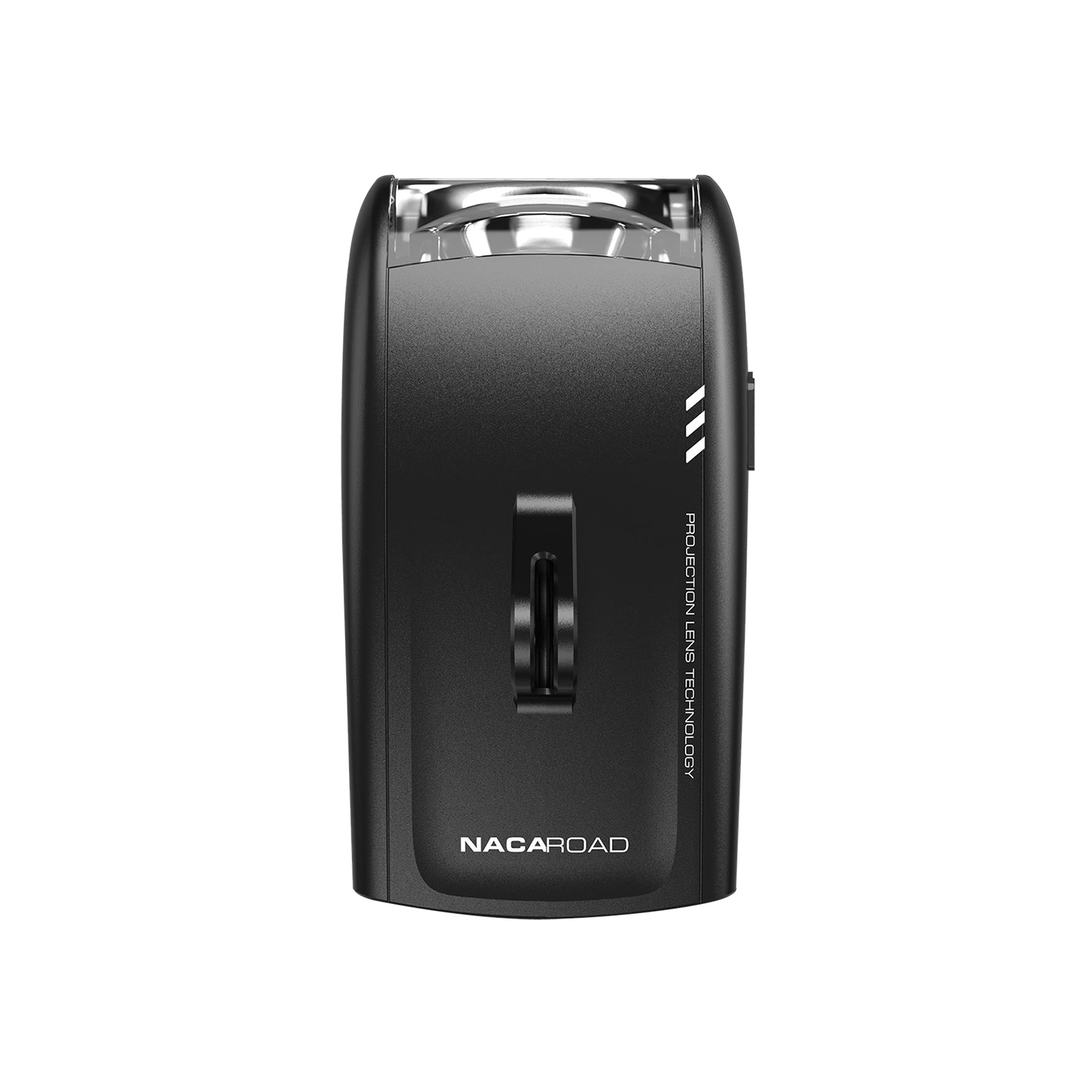

Specifically designed to meet the demanding aerodynamic requirement of high-end racing bikes, NACA Road matches the shape of the NACA airfoil. Air resistance is minimized through the design following the NACA airfoil shape.(Cd, drag of coefficient: 0.267).
When it is driven at a speed of 45km/h, the energy consumed by air resistance is only 0.48W. A lens incorporating automotive projection lens technology realizes a perfect cut-off line at a height of only 2 centimeters
Light unit
NACAROAD lighting performance
With glare-free from the opposite, the maximum front sight distance of 72m is realized. Maximum horizontal viewing angle of 52°.
Assembly
Install on GoPro Mount.
After installing on the mount, illuminate the lamp on the wall from a distance of 2m and fix it so that the cut-off line is located 3.5cm below the product height. The user’s eyes are more comfortable by attaching the bicycle computer or anti-glare shield.
Function
Lighting specification by brightness mode.
Max power → Sports mode → Touring mode → City mode
* Press the button on the right side of the product for more than 2 seconds to turn on/off.
Charge state
Precautions
After installation, check that the NACA ROAD does not rotate under load.
Make sure that the headlight is not covered by a bag or similar when driving.
Do not make any independent modifications to the product. Do not attempt to open the product.
If the headlight fails, it must in any case be sent to the importer for repair or replaced completely.
FAQ
Lumen is the unit used to determine the luminous flux and provides information about the total light emitted without considering its spread – e.g. spot or wide area. Lux, on the other hand, defines the illuminance at the brightest point, measured perpendicular to the road, at a distance of 10 metres. As with lumens, this value does not indicate how large the actually illuminated area appears. Depending on the test scenario, there may be further deviations, making a direct comparison of products based on lumen/lux values not very useful.
In real conditions, NACA Road thus shines brighter than other headlights despite comparatively lower lumen/lux values, as NACA Road sets new benchmarks in distance and width of the light carpet thanks to the advanced lens system.
There are four brightness levels: City, Touring, Sport and Max Power.
NACA Road is charged via USB-C cable ( power adapter or power bank). A full charge takes 2.7 to 3 hours. The battery can be charged at the same time as using the device. Depending on the level set, the battery life is more than 7 hours.
Yes! NACA Road is dust/splash-proof according to IP66 and can therefore also be used in heavy rain. Charging (while riding) should not be done in the rain, as the USB-C charging port is no longer sealed by the cap.
NACA Road can be installed with any GoPro mount, e.g. below a bike computer (Garmin/Wahoo). Due to different designs of cockpits and individual requirements, there is no mount in the box.
On a straight track, even in the distance, the cut-off line should still be visible on the road. The beam angle can be freely adjusted on a GoPro mount.
| Operating Temperature | Min : -15° C Max : 45° C Optimum storage temperature : 20-25°C |
2 years from the date of purchase.
In case of warranty, (replacement or repair), please contact the distributor through whom the product was purchased.
Old appliances and batteries must not be disposed of with normal household waste.
According to EU Directive 2012/19/EU, the product must be disposed of properly at the end of its service life. Return the old device to a collection point for electronic waste or a recycling center
