S341E

Name: S341E
SKU: 970
Price: 90.00 USD
Availability: InStock

$90.00

E-bike 배터리로 작동
StVZO 버전이 아닙니다. (독일 도로에서는 사용할 수 없음)
비돌출형 LED입니다.

Categories: International, Seatposts

Description
Reviews (0)

seatpost- S341E

S341E 버전에서는 외부 전원(e-bike의 배터리)에 연결된 케이블을 통해 조명에 전원이 공급됩니다. 이 버전은 StVZO가 아닌 버전이며 독일을 제외한 모든 국가에서 사용할 수 있습니다. 전기자전거와 연결되면 조명이 항상 켜져 있습니다.렌즈 5개 LED 모두 비투과형이라 안장 높이를 낮추고 싶을 때 seatpost를 끝까지 넣고 짧게 사용하면 됩니다. 전기자전거 배터리 부분 커넥터 호환성 확인 후 구매 바랍니다. 연장 케이블이 필요하시면 연락처 창에서 메시지를 보내주시기 바랍니다.

특징

특허 받은 seat rail clamp가 장착된 시트포스트입니다. seatpost에는 5개의 LED가 있습니다. 커넥터가 있는 케이블은 전기자전거의 시스템에 연결하기 위해 seatpos의 하단 밖으로 연장됩니다

지름 (㎜)	27.2 / 30.9 / 31.6
길이 (㎜)	350 (D 27.2 / D 30.9 / D 31.6), 400 (D 30.9 / D 31.6)
색상 표면 마감처리	Polished Silver / Matt Black
Seatpost Type	2 bolt clamp, offset 9mm
재질	알루미늄 6061 T6

ETC

Seatpost test standard	EN 15194
Compliant with standard or directive	CE, RoHS, IPX5
제품 구성	S311D seatpost 1개

기능

라이트는 전기자전거 시스템의 라이트 스위치에 의해 작동됩니다. 전원을 켜면 5개 LED가 모두 켜집니다.

Light unit

Lens Type	비돌출형
Light Module5	5 high brightness red LEDs, Non Protruding LED Lens
Brightness	15 cd
Power source	The on-board battery of the e-bike.
Nominal voltage	DC 6V (6V-12V)
전력소비	0.3W

Precautions

Operating Temperature

Min : -15° C Max : 45° C Optimum storage temperature : 20-25°C

Warranty

2 years from the date of purchase. In case of warranty, (replacement or repair), please contact the distributor through whom the product was purchased.

Waste Disposal

Old appliances and batteries must not be disposed of with normal household waste. According to EU Directive 2012/19/EU, the product must be disposed of properly at the end of its service life. Return the old device to a collection point for electronic waste or a recycling center

Shipping

Please be aware before order. The import tax will be charged to you separately. Taxes may vary depending on the country.

If you want to return or exchange, you will be charged a Fedex round-trip shipping fee. Prices are inclusive of basic international shipping.

Regions where additional shipping fee are generated will be charged at the payment window.

Returns and Exchanges

Returns : When returning the product, please contact the seller first to discuss the reason for return, delivery fee, shipping address, and etc. and then send the return product. Please send us unused products by prepaid, will refund you after confirming arrival. Exchanges : Please send us unused items by prepaid, and send $60~70 re-delivery courier fee depending on your location. After receipt the goods and courier fee, we will replace it with another product.

Reviews

There are no reviews yet.

Be the first to review “S341E” Cancel reply

You must be logged in to post a review.

S341E

$90.00

Categories: International, Seatposts

Description
Reviews (0)

seatpost- S341E

In the S341E version, the light is powered via a cable connected to an external power source (e-bike’s battery).
This is non-StVZO version and available to use all the countries except Germany. Light will be always on mode when turn on the light thru e-bike computer. All five lenses are non-protruding, so when you want to lower the height of the saddle, you can insert the seat post all the way down and use it shorter.
Please purchase after checking the compatibility of the connector of the battery part of your electric bicycle. If you need an extension cable, please send us a message in the contact us window.

Features

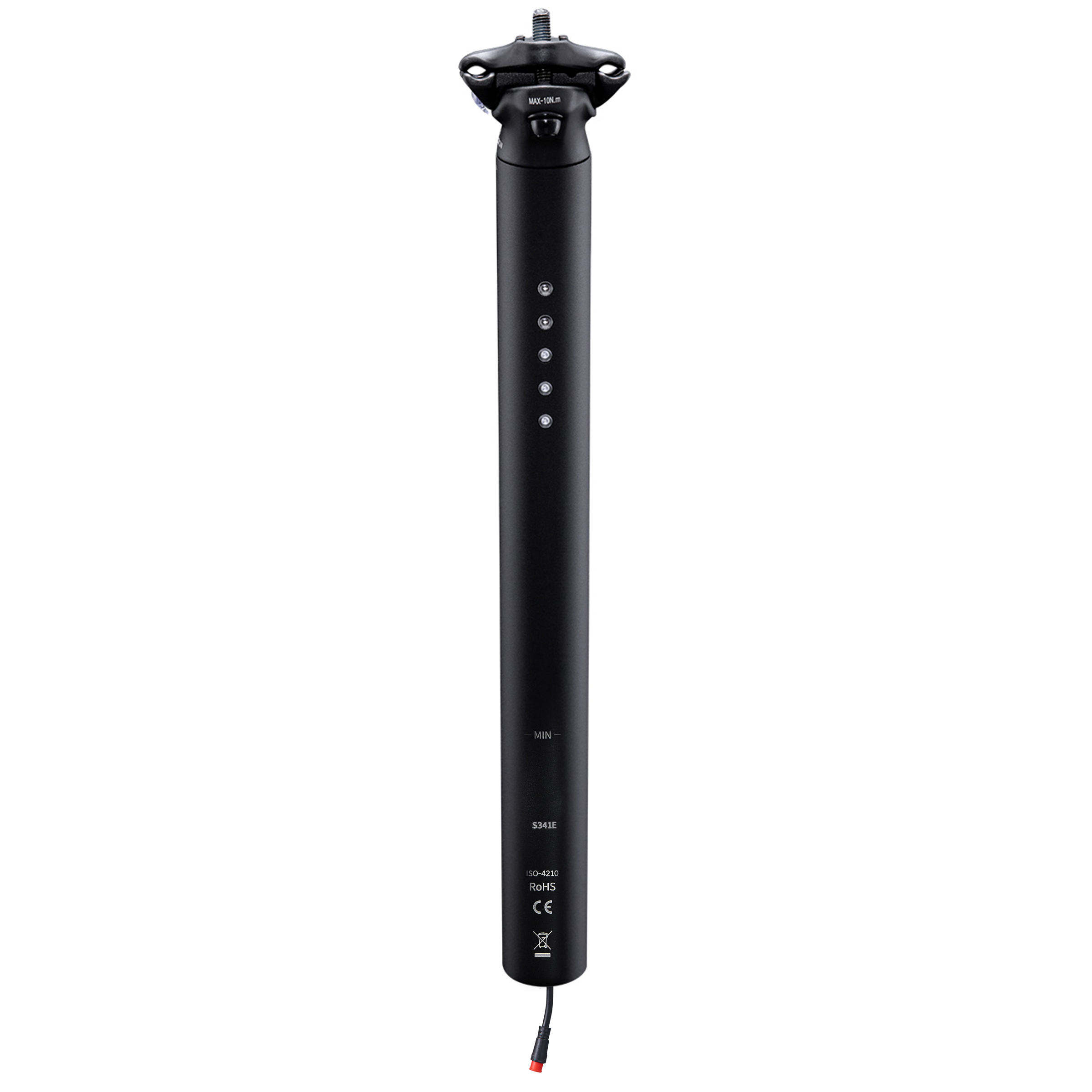

Patented seatpost with an integrated seat rail clamp. The seatpost tube features 5 holes in which the LEDs are enclosed. A cable with a connector extends out of the lower end of the seatpost tube for connection to the electrical system of the e-bike.

Diameter (㎜)	27.2 / 30.9 / 31.6
Length (㎜)	350 (D 27.2 / D 30.9 / D 31.6), 400 (D 30.9 / D 31.6)
Color surface finish	Polished Silver / Matt Black
Seatpost Type	2 bolt clamp, offset 9mm
Seapost material	Aluminum 6061 T6

ETC

Seatpost test standard	EN 15194
Compliant with standard or directive	CE, RoHS, IPX5

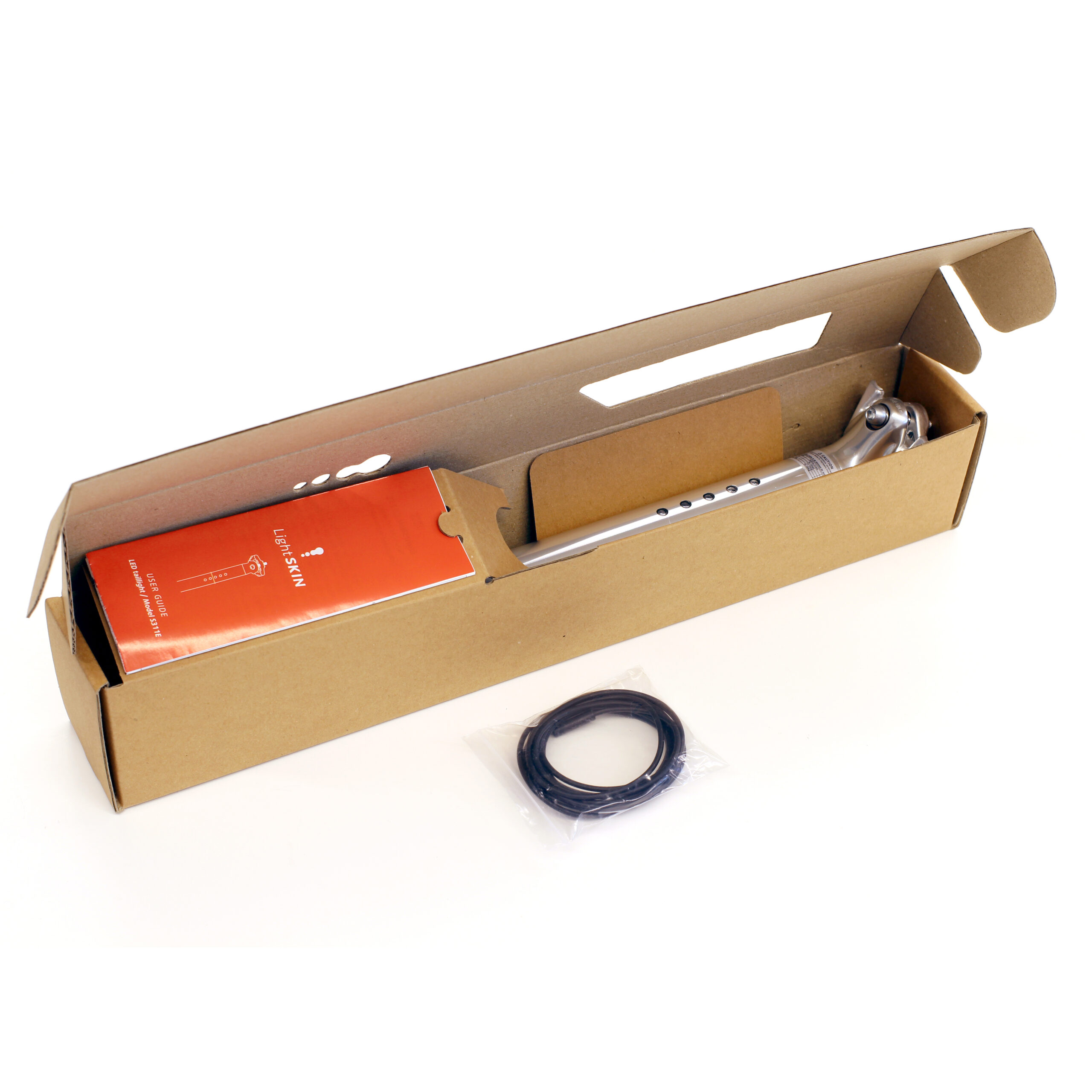

Package Contents	Rear light seatpost

Function

The rear light is operated by the light switch of the e-bike system. When switched on, all 5 LEDs light up.

Light unit

Lens Type	Non Protruding
Light Module5	5 high brightness red LEDs, Non Protruding LED Lens
Brightness	15 cd
Power source	The on-board battery of the e-bike.
Nominal voltage	DC 6V (6V-12V)
Power consumption	0.3W
