HANDLE BAR - H2E

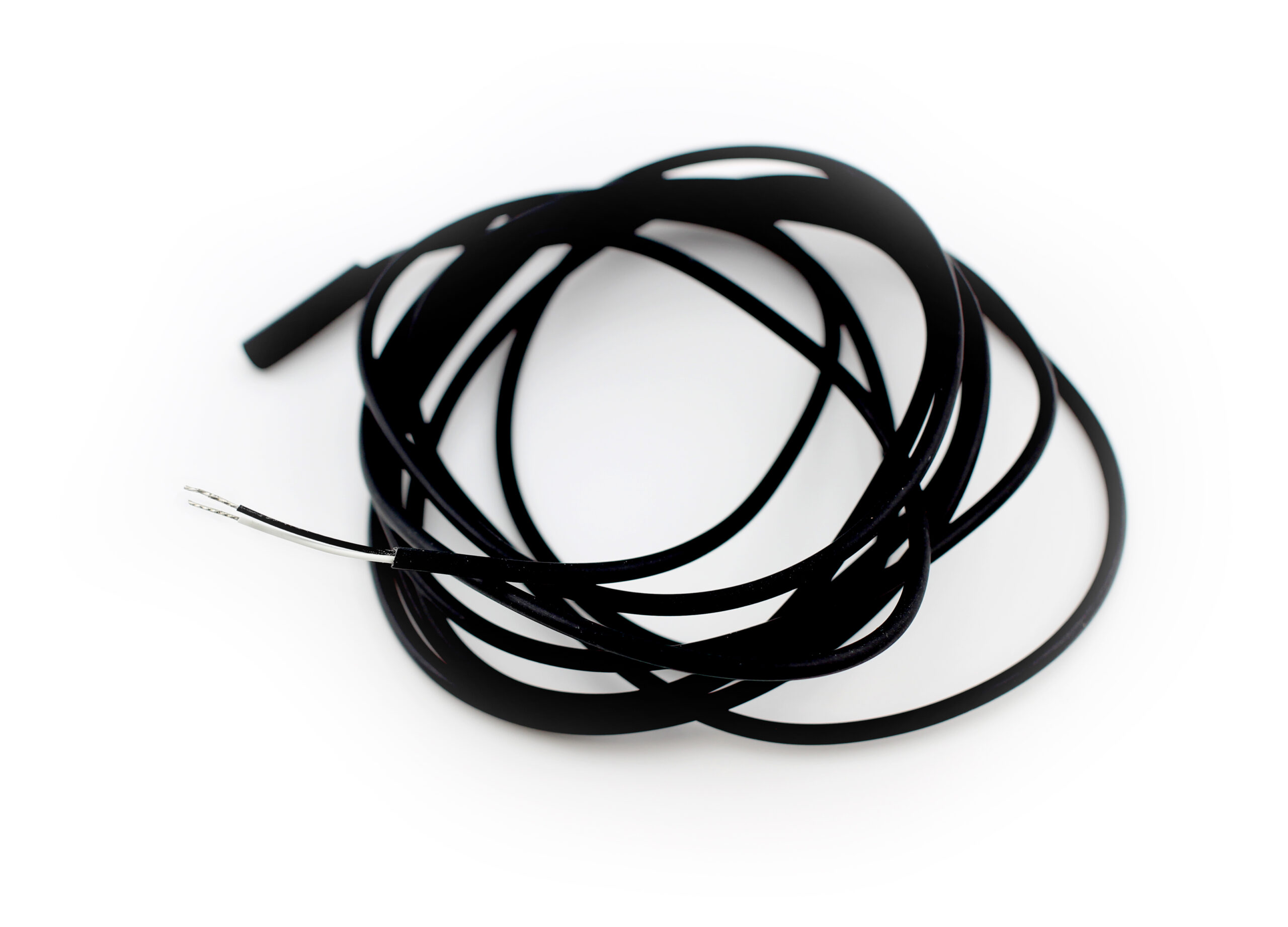

In the H2E version, the light is powered via a cable connected to an external power source (e-bike’s battery).
StVZO version available in Germany, light will be always on mode when turn on the light thru e-bike computer. Please purchase after checking the compatibility of the connector in the battery part of your electric bicycle. If you need an extension cable, please send us a message in the contact us window.
The handlebar has at least one drilled or milled out hole in which the headlight lens is integrated. Depending on the version, there may be an additional hole for the power supply. In addition, the headlight (LED, lens and circuit board) is built into the handlebar in such a way that it is protected from the elements. The handlebar is sealed so that water cannot enter.
|Diameter (㎜)||Center 31.8 / Grip 22.2|
|Handlebar width (㎜)||600/ 620 / 640 / 660 / 680 / 700|
|Bar Type||Back sweep 6˚ , Up sweep 0˚ , Rise ±5㎜|
|Handlebar color and surface finish||Polished Silver / Matt Black|
|Handlebar material||Aluminum 6061 T6|
|Handlebar test standard||ISO 4210 Mountain, EN 15194|
|Approval Code||K 1721|
|Compliant with standard or directive||CE, RoHS, StVZO §22a TA Nr.23(Headlights for bicycles), IPX4|

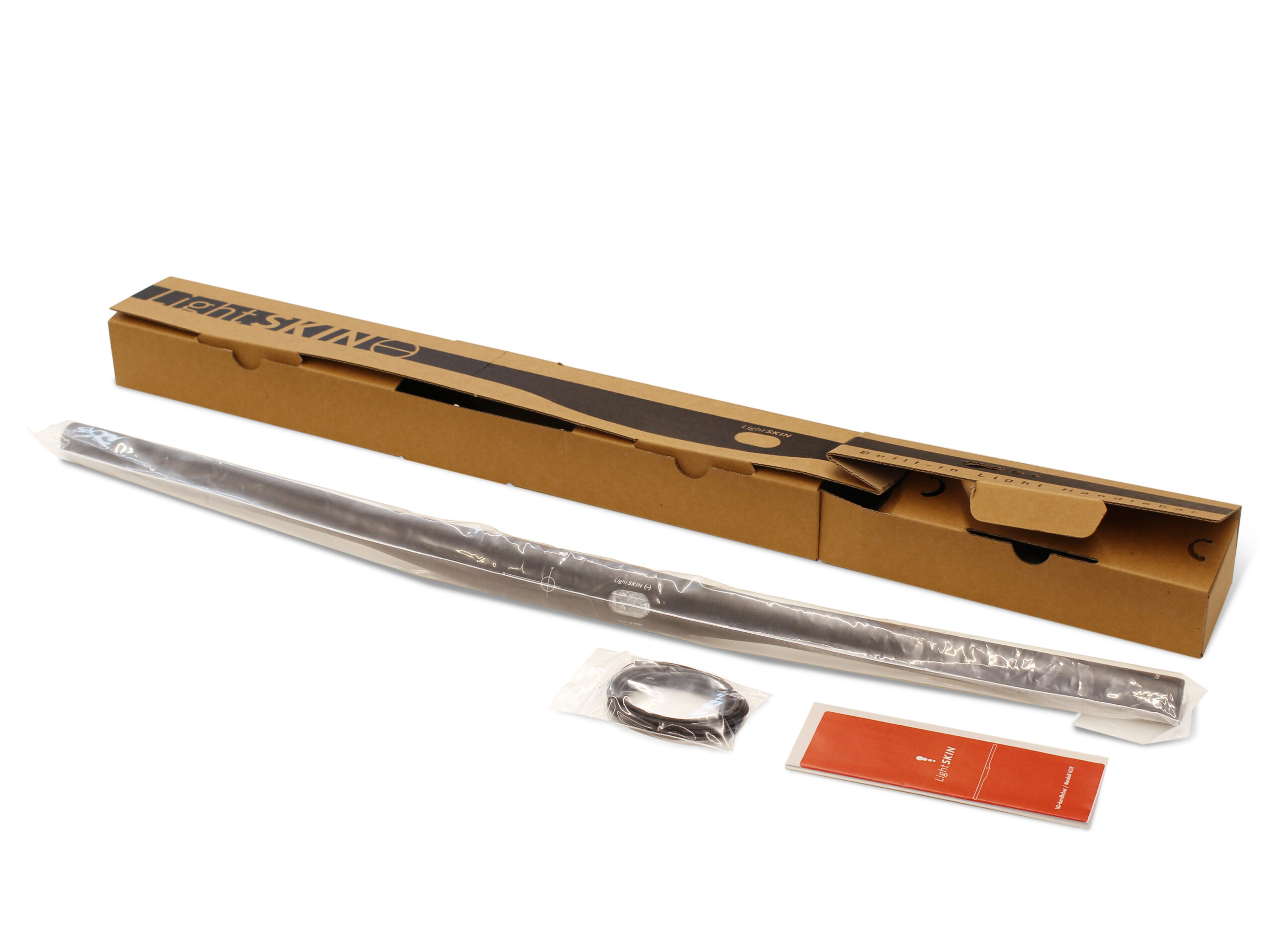

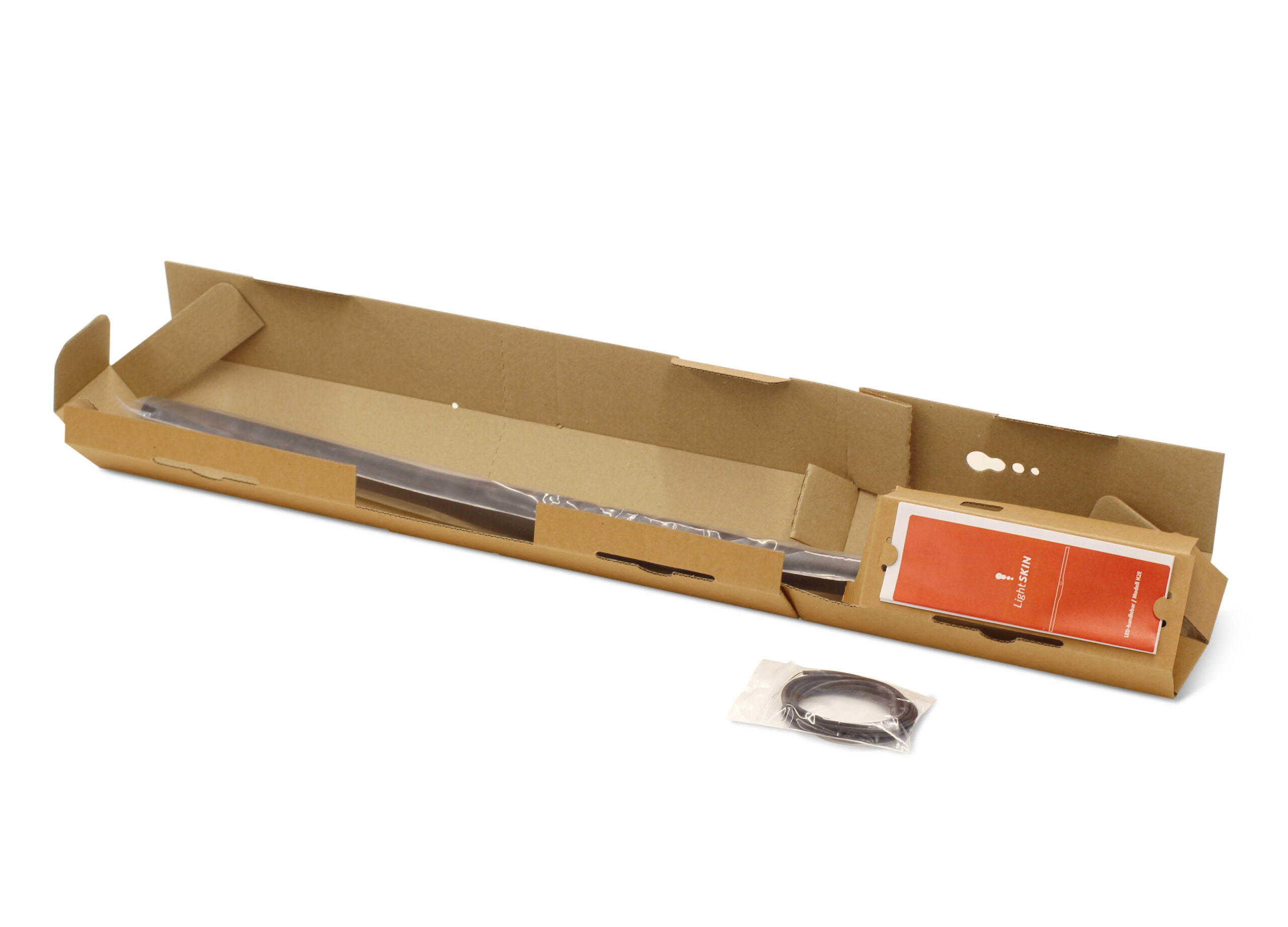

|Package Contents||Front light handlebar|
The headlight is operated by the light switch of the e-bike system.
The headlight does not have a high beam or daytime light mode.
|Light Module||LightSKIN H2 Lens|
|Power source||On-board battery of the e-bike|
|Nominal voltage||DC 6V (5V-24V)|
|Operating Temperature||Min : -15° C
Max : 45° C
Optimum storage temperature : 20-25°C
2 years from the date of purchase.
In case of warranty, (replacement or repair), please contact the distributor through whom the product was purchased.
Old appliances and batteries must not be disposed of with normal household waste.
According to EU Directive 2012/19/EU, the product must be disposed of properly at the end of its service life. Return the old device to a collection point for electronic waste or a recycling center
When returning the product, please contact the seller first to discuss the reason for return, delivery fee, shipping address, and etc. and then send the return product.
Please send us unused products by prepaid, will refund you after confirming arrival.
Please send us unused items by prepaid, and send $60~70 re-delivery courier fee depending on your location. After receipt the goods and courier fee, we will replace it with another product.
