HANDLE BAR - H2D moon
In the H2D version, the light is powered by a hub dynamo.
Simply connect the enclosed extension cable to the handlebar and hub dynamo.
Features
The handlebar has at least one drilled or milled out hole in which the headlight lens is integrated. Depending on the version, there may be an additional hole for the power supply. In addition, the headlight (LED, lens and circuit board) is built into the handlebar in such a way that it is protected from the elements. The handlebar is sealed so that water cannot enter.
| Diameter (㎜) | Center 31.8 / Grip 22.2 |
| Handlebar width (㎜) | 620 |
| Bar Type | Back sweep 18˚ , Up sweep 0˚ , Rise 0㎜ |
| Handlebar color and surface finish | Polished Silver / Matt Black |
| Handlebar material | Aluminum 6061 T6 |
ETC
| Handlebar test standard | ISO 4210 Mountain, City |
| Approval Code | K 1721 |
| Compliant with standard or directive | CE, RoHS, StVZO §22a TA Nr.23(Headlights for bicycles), IPX4 |

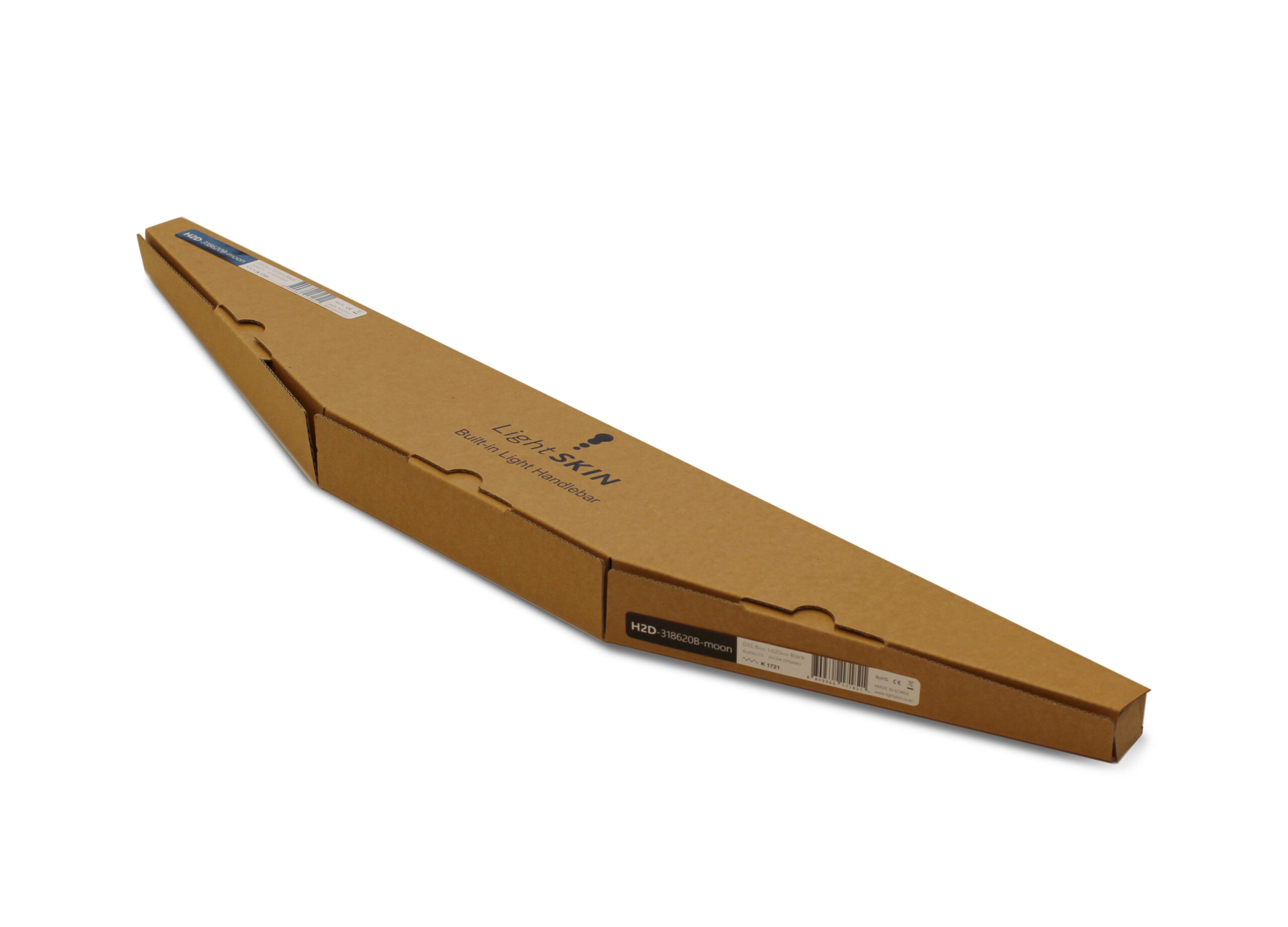

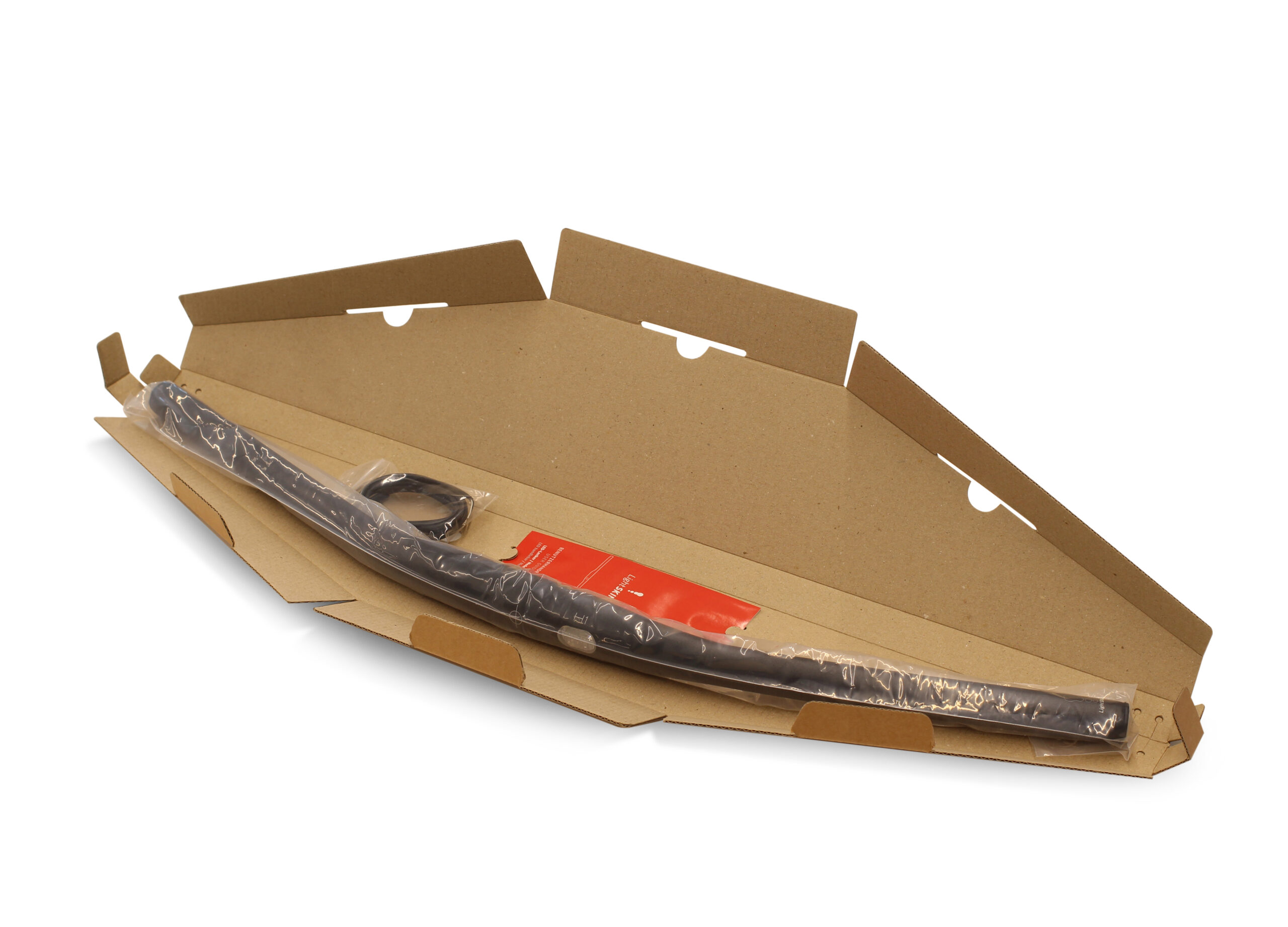

| Package Contents | Front light handlebar, 2000mm extension cable |
Function
The headlight turned on when the bike is moving. The headlight turned on for 4 minutes after the bike is stopped.
Light unit
| Light Module | LightSKIN H2 Lens |
| Luminous flux | 150lm |
| Power source | AC 6V(3W) Bicycle Dynamo |
| Nominal voltage | AC 6V |
| Power consumption | 2.4W |
| Shipping Weight 31.8 – 620 | 0.56kg |
| Shipping Diameter | 680*120*50 |
Precautions
| Operating Temperature | Min : -15° C Max : 45° C Optimum storage temperature : 20-25°C |
Warranty
2 years from the date of purchase.
In case of warranty, (replacement or repair), please contact the distributor through whom the product was purchased.
Waste Disposal
Old appliances and batteries must not be disposed of with normal household waste.
According to EU Directive 2012/19/EU, the product must be disposed of properly at the end of its service life. Return the old device to a collection point for electronic waste or a recycling center
