seatpost- S311E

Name: S311E
SKU: 946
Price: 75 USD
Availability: InStock

In the S311E version, the light is powered via a cable connected to an external power source (e-bike’s battery).
StVZO version available in Germany, light will be always on mode when turn on the light thru e-bike computer. S311E has the top two lenses protrude, a side view is always provided for safety. The StVZO version restricts the minimum insertion position so that the mechanical stopper does not go down any further as the top three lenses must always be exposed.

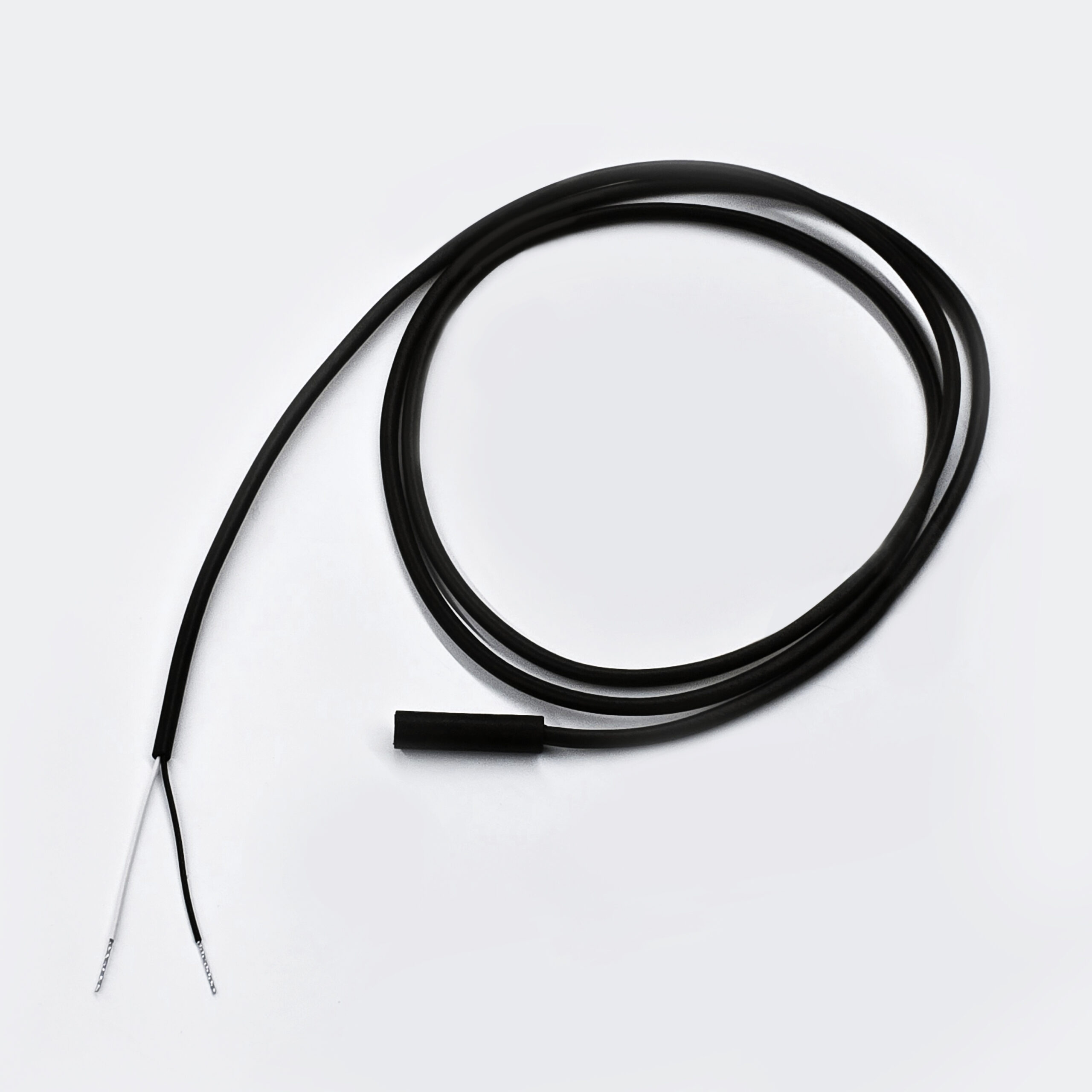

Please purchase after checking the compatibility of the connector in the battery part of your electric bicycle. If you need an extension cable, please send us a message in the contact us window.

Features

Patented seatpost with an integrated seat rail clamp. The seatpost tube features 5 holes in which the LEDs are enclosed. A cable with a connector extends out of the lower end of the seatpost tube for connection to the electrical system of the e-bike.

Diameter (㎜)	27.2 / 30.9 / 31.6
Length (㎜)	350 (D 27.2 / D 30.9 / D 31.6), 400 (D 30.9 / D 31.6)
Color surface finish	Polished Silver / Matt Black
Seatpost Type	2 bolt clamp, offset 9mm, mechanical stopper
Seapost material	Aluminum 6061 T6

ETC

K-number	K-1595
Seatpost test standard	EN 15194
Compliant with standard or directive	CE, RoHS, StVZO §22a TA Nr.14b (Rear lights for bicycles), IPX5

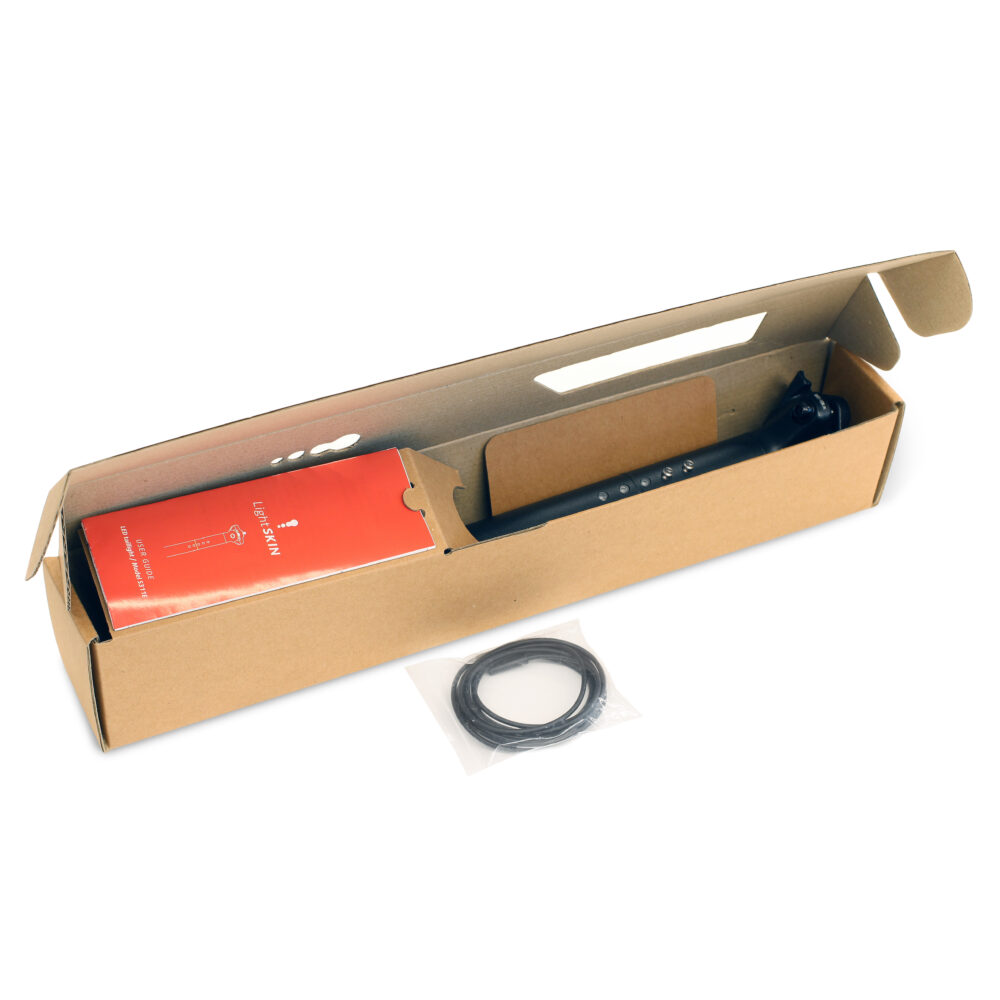

Package Contents	Rear light seatpost

Function

Light unit

Lens Type	Protruding
Light Module	2 wide angle red LEDs, 3 high brightness red LEDs
Brightness	12 cd
Power source	The on-board battery of the e-bike.
Nominal voltage	DC 6V (6V-12V)
Power consumption	0.3W

Precautions

Operating Temperature

Min : -15° C
Max : 45° C
Optimum storage temperature : 20-25°C

Warranty

2 years from the date of purchase.

In case of warranty, (replacement or repair), please contact the distributor through whom the product was purchased.

Waste Disposal

Old appliances and batteries must not be disposed of with normal household waste.

According to EU Directive 2012/19/EU, the product must be disposed of properly at the end of its service life. Return the old device to a collection point for electronic waste or a recycling center

Shipping

Please be aware before order. The import tax will be charged to you separately. Taxes may vary depending on the country.

If you want to return or exchange, you will be charged a Fedex round-trip shipping fee. Prices are inclusive of basic international shipping.

Regions where additional shipping fee are generated will be charged at the payment window.

Returns and Exchanges

Returns :

When returning the product, please contact the seller first to discuss the reason for return, delivery fee, shipping address, and etc. and then send the return product.

Please send us unused products by prepaid, will refund you after confirming arrival.

Exchanges :

Please send us unused items by prepaid, and send $60~70 re-delivery courier fee depending on your location. After receipt the goods and courier fee, we will replace it with another product.

121212

Features

Diameter (㎜)	27.2 / 30.9 / 31.6
Length (㎜)	350 (D 27.2 / D 30.9 / D31.6), 400 (D 30.9 / D 31.6)
Color surface finish	Polished Silver / Matt Black
Seatpost Type	2 bolt clamp, offset 9mm, mechanical stopper
Seatpost material	Aluminum 6061 T6

Light unit

Light Module	2 wide angle red LEDs, 3 high brightness red LEDs.
Brightness	12cd
Power source	The on-board battery of the e-bike.
Nominal voltage	DC 6V (6V-12V)
Power consumption	0.3W

ETC

K-number	K-1595
Seatpost test standard	EN 15194
Compliant with standard or directive	RoHS, UN3481, StVZO §22a TA Nr.23 (Rear lights for bicycles), IPX5
Package Contents	Rear light seatpost

Assembly

Use the correct diameter corresponding to your bicycle frame.
Use the appropriate tool to fasten the saddle support.
Adhere to the safety lines of the minimum and maximum insertion heights.
The rear light may only be operated in the following angular range: Max 76˚, Min 70˚.
The lower two LEDs may be sunk in the frame. Always pay attention to the mechanical stopper of the maximum insertion depth!
The rear light must be mounted in such a way that it is illuminated at the rear. The reference axis (see drawing) must be aligned parallel to the bicycle‘s longitudinal axis.
The two lower LEDs may be inserted into the frame. The minimum insertion length into the frame is 100mm. The rear light must be aligned so that it shines backward. The reference axis (see drawing) must be aligned with the longitudinal axis of the bicycle. A mechanical stopper prevents the insertion of the seatpost to cover the 3rd LED(from the bottom) and damage to the two top protruding LEDs.

Connecting to the power source

The connector of built-in light seatpost and the connector of power source should be compatible, which must be ascertained before the purchase of the product.

Function

The second top LED functions as a button and is used to operate the rear light.

Light modes

Off → 5 LEDs → 3 LEDs → Long press to switch off

Precautions

At startup, the product must be dry. Remove any moisture before riding.
After installation, test that the seatpost does not drop under load.
Take care that the LEDs are not covered by a bag or clothing when riding.
Do not make any independent changes to the product. Do not try to open the product.
The product contains one lithium-polymer battery.

Steps to take in

the event of a failure

If either LED no. 4 or no. 5 is defective, the mode must be switched to the 3 LED mode to conform with the regulation. Repair or replacement is nevertheless recommended. If LED no. 1, no. 2 or no. 3 fails, the seat post must in any case be sent to the importer for repair or replacement.
If the rear light is defected, it must be immediately replaced.
If you ride with the seat post low, it may be the case that the seat clamp covers one of the lenses. Please ensure that the clamp area is not directly tightened on to the lens as per the illustration below.

USB port

When fitting the saddle, please make sure that the small transparent rubber cap for the micro USB connection is clamped under the strut.
Do not pull on the charging cable excessively.
If the USB connector is exposed to heat, it may lose its shape.
We recommend using the supplied USB cable to ensure proper battery charging.
If you use another cable, please make sure that it is an original Micro USB cable, in the dimensions 10mm wide and 7mm high.
If the USB plug has deformed, it must be replaced.

Operating

Temperature

Min: -15° C

Max: 45° C

Optimum storage temperature: 20-25°C
